Mastering UV-Vis Calibration: A Scientist's Guide to Precision and Accuracy in Biomedical Research

Abstract

This article provides a comprehensive guide for researchers and drug development professionals to overcome common and complex calibration challenges in UV-Vis spectroscopy. It covers foundational principles, advanced methodological applications, systematic troubleshooting for issues like stray light and lamp failures, and validation protocols against established techniques. By integrating traditional best practices with emerging trends like machine learning and digital integration, this resource aims to enhance data reliability, improve operational efficiency, and support robust analytical outcomes in pharmaceutical and clinical settings.

Understanding UV-Vis Calibration: Core Principles and Common Pitfalls

Core Principles and Quantitative Application

The Beer-Lambert Law establishes the fundamental relationship between the absorption of light and the properties of the material through which the light is traveling. It is the cornerstone of quantitative analysis using UV-Vis spectroscopy [1].

The law states that the absorbance (A) of a solution is directly proportional to its concentration (c) and the path length (l) of the light through the solution. This relationship is expressed mathematically as:

A = εcl

Where:

• A is the measured Absorbance (a dimensionless quantity) [1] [2].
• ε is the Molar Absorptivity (or molar extinction coefficient), a constant that is a measure of how strongly a chemical species absorbs light at a particular wavelength (units typically of L·mol⁻¹·cm⁻¹) [1] [2].
• c is the Molar Concentration of the absorbing species in the solution (units of mol·L⁻¹) [1].
• l is the Path Length, or the distance the light travels through the solution (units typically of cm) [1].

This linear relationship allows for the determination of an unknown concentration by measuring its absorbance. This is done by creating a calibration curve of absorbance versus concentration for known standards [2].

Relationship Between Absorbance and Transmittance

Absorbance is defined via the incident light intensity (I₀) and transmitted light intensity (I). Transmittance (T) is the ratio of the transmitted to incident light (T = I/I₀), while Absorbance is the negative logarithm of transmittance [1] [2]:

A = log₁₀ (I₀/I)

The table below shows how these two key metrics relate [2]:

Absorbance (A)	Transmittance (T)
0	100%
1	10%
2	1%
3	0.1%
4	0.01%
5	0.001%

Troubleshooting Guides and FAQs

This section addresses common challenges researchers face when applying the Beer-Lambert Law in practice.

Frequently Asked Questions (FAQs)

Q1: My calibration curve is not linear. What could be the cause? A non-linear curve often occurs at high concentrations where the Beer-Lambert Law assumptions break down. Causes include:

• Chemical deviations: Analyte concentrations above 0.01 M can cause interactions between molecules, changing the absorptivity [1].
• Stray light: Unwanted light reaching the detector can lower absorbance readings, especially at high absorbance values, causing negativity [3] [4].
• Instrumental deviations: Use of polychromatic light can lead to non-linearity [1].

Q2: Why is my absorbance reading higher than expected?

• Sample turbidity: Particulates in the solution scatter light, increasing the measured attenuation [3].
• Contaminated cuvette: Fingerprints, scratches, or residue on the cuvette can scatter or absorb light [5].
• Impurities: Contaminants in the sample that absorb at the measured wavelength will contribute to the total absorbance [3] [5].

Q3: What does a negative absorbance value indicate? A negative absorbance typically means the transmitted intensity (I) is greater than the incident intensity (I₀). This is physically impossible in ideal conditions and points to an error, most commonly:

• Improper blanking: The blank used to zero the instrument may have a higher absorbance than the sample itself [3].
• Stray light: A significant level of stray light can cause negative absorbance readings [4].

Q4: My sample's absorbance changes over time during measurement. Why? This is frequently a sign of sample degradation. Some compounds are photosensitive and can break down when exposed to UV or visible light from the spectrophotometer beam [3]. To mitigate this, use fresh samples, limit exposure time, and employ UV-blocking cuvettes.

Troubleshooting Common Problems

The following workflow diagram outlines a logical approach to diagnosing and resolving common UV-Vis spectroscopy issues related to quantitative analysis.

Logical Troubleshooting Workflow for UV-Vis Analysis

For quick reference, the table below summarizes specific symptoms, their likely causes, and recommended solutions.

Symptom	Possible Cause	Solution
Non-linear Calibration	High concentration (Beer-Lambert deviation)	Dilute sample to lower concentration [1].
	Stray light	Clean optics; replace lamp if old; use instrument with low stray light [3] [4].
Noisy Baseline	Air bubbles in cuvette	Degas solution; tap cuvette to dislodge bubbles [3].
	Instrument instability	Allow lamp to warm up for 45 minutes [5] [6].
	Electrical interference or vibrations	Move instrument away from sources of interference [3].
Varying Absorbance Readings	Cuvette positioning inconsistencies	Always place cuvette in the same orientation; ensure proper alignment [3] [5].
	Sample evaporation or degradation	Perform measurements quickly; use sealed cuvettes for volatile solvents [3] [5].
Unexpected Peaks	Contaminated cuvette or solvent	Thoroughly clean cuvettes; use high-purity solvents [3] [5].
	Impurities in sample	Re-purify the sample [5].

Overcoming Calibration Challenges

Proper calibration and validation are non-negotiable for obtaining accurate, reproducible quantitative data that complies with regulatory standards.

Essential Calibration Parameters and Protocols

According to pharmacopeia standards like the United States Pharmacopeia (USP), several key parameters must be tested to ensure spectrophotometer accuracy [4].

Parameter	Purpose	Standard Method / Reagent
Wavelength Accuracy	Verifies the spectrophotometer accurately reproduces known wavelengths.	Measure a holmium oxide filter or solution, which has sharp, well-defined peaks [4].
Photometric Accuracy	Confirms the instrument measures absorbance correctly against a reference.	Measure a neutral density filter or potassium dichromate solution with known absorbance values [6] [4].
Stray Light	Detects unwanted light outside the target wavelength reaching the detector.	Use a potassium chloride solution which blocks all light below ~200 nm; any signal detected is stray light [4].
Resolution	Assesses the instrument's ability to resolve fine spectral features.	Measure the spectrum of a solution containing n-Hexane and Toluene and check the valley between their peaks [4].

The following diagram illustrates the critical steps in the calibration and validation process to ensure data integrity.

Spectrophotometer Calibration and Validation Workflow

Step-by-Step Protocol: Photometric Accuracy Calibration

This protocol is essential for verifying that your instrument provides correct absorbance values [6].

• Warm-up: Turn on the spectrophotometer and allow the lamp to warm up for at least 45 minutes to ensure stable output [6].
• Select Wavelength: Choose the wavelength for calibration as specified in the instrument's manual or your SOP.
• Zero the Instrument:
  • If your calibration standard requires a dedicated blank, insert it into the cuvette holder and close the lid.
  • If no blank is provided, ensure the cuvette holder is empty and close the lid.
  • Zero the instrument so the display reads 0.000 AU [6].
• Measure Standard:
  • Remove the blank (if used).
  • Insert the NIST-traceable calibration standard into the holder and close the cover [6].
  • Record the absorbance reading.
• Verify and Troubleshoot:
  • Compare the measured value to the range on the standard's Certificate of Calibration. If it matches, calibration is successful [6].
  • If the value is out of specification:
    • Check the combined uncertainty of the standard and the instrument's tolerance [6].
    • Repeat the measurement. If it persists, try the standard on another instrument to isolate the fault to the standard or the spectrophotometer [6].
    • The instrument may require professional service or the standard may need re-calibration.

The Scientist's Toolkit: Essential Research Reagents and Materials

The table below lists key materials and reagents critical for successful and accurate UV-Vis quantitative analysis.

Item	Function / Purpose	Key Considerations
Quartz Cuvettes	Holds liquid sample for measurement. Standard pathlength is 1 cm.	Required for UV range measurements (<350 nm). Must be clean and free of scratches [5].
NIST-Traceable Calibration Standards	Validates photometric and wavelength accuracy of the spectrophotometer.	Can be solid (filters) or liquid (solutions). Handle with powder-free gloves to avoid damage [6].
Holmium Oxide Solution/Filter	Calibrates wavelength accuracy using its sharp, characteristic absorption peaks.	The standard for verifying peak position accuracy across the UV-Vis spectrum [4].
Potassium Chloride Solution	Used for stray light verification, particularly in the UV region.	A concentrated solution should block all light; any signal detected is stray light [4].
HPLC-Grade Solvents	Used to dissolve samples and prepare mobile phases and blanks.	Low UV absorbance to minimize background noise. Always use in a well-ventilated fume hood [3] [7].
Sample Filters (0.45 μm or 0.2 μm)	Removes particulates from samples to prevent light scattering.	Essential for ensuring that attenuation is due to absorption, not scattering [3].
Buffer Salts (e.g., Phosphate)	Maintains constant pH for analytes that are pH-sensitive.	Use high-purity grades. Ensure the buffer does not absorb significantly at your wavelength of interest [3] [7].

Troubleshooting Guides

Troubleshooting Stray Light

Stray light is unwanted light that reaches the detector, causing inaccurate absorbance readings, particularly at high absorbance values, and reducing the overall accuracy of your measurements [8].

• Q: My absorbance readings are lower than expected, especially for concentrated samples. What should I check?

  • A: This is a classic symptom of stray light. First, ensure your instrument's optical compartment is clean and free of dust or contaminants on the lenses, mirrors, and windows [3]. Use high-quality, optically clear cuvettes that are appropriate for your wavelength range, as scratches or low-quality materials can scatter light [9] [3]. For a definitive check, use certified reference materials, such as potassium chloride (KCl) solutions for the UV range, to quantify the level of stray light in your instrument [9].

• Q: The instrument's self-test is failing with a stray light error code. What does this mean?

  • A: An error code like "NG9" often indicates insufficient energy from the deuterium lamp, which is commonly used for UV light and can degrade over time [10]. This low energy can be interpreted by the instrument as a stray light failure. If you primarily use the visible range, you may continue temporarily, but the deuterium lamp will likely need replacement for accurate UV measurements [10].

Troubleshooting Wavelength Accuracy

Deviations in wavelength calibration can lead to absorbance measurements being taken at incorrect wavelengths, resulting in errors in peak identification and concentration calculations [3].

• Q: How can I verify that my spectrophotometer is measuring at the correct wavelength?

  • A: Regularly calibrate your instrument using certified wavelength standards [3]. Holmium oxide filters or solutions are industry-standard materials with sharp, known absorption peaks [8] [9]. Measure the standard and compare the recorded peak positions to the certified values. Any consistent deviation indicates a need for wavelength recalibration [11].

• Q: My instrument failed its wavelength check after a period of disuse. What could be wrong?

  • A: Instruments not used for long periods are susceptible to environmental damage. A common cause is the deliquescence (absorption of moisture leading to dissolution) of the optical filters [10]. These filters may need to be cleaned or replaced by a qualified service technician.

Troubleshooting Baseline Shifts

Baseline shifts, seen as a gradual upward or downward drift of the zero-absorbance line, can be caused by changes in light source intensity, temperature fluctuations in components, or general instrument instability [12] [8].

• Q: The baseline of my instrument is unstable and drifts over time. How can I stabilize it?

  • A: First, allow the instrument adequate warm-up time (typically 30 minutes) to stabilize the lamp and electronics [12]. Ensure your laboratory environment is stable, with minimal vibrations and temperature fluctuations [9] [3]. Always perform a baseline correction with your blank solution before starting measurements [12] [3]. For instruments with the option, a double-beam design can significantly reduce drift by simultaneously compensating for light source fluctuations in the sample and reference paths [12] [8].

• Q: After a baseline correction, I still see an unexpected shift across wavelengths. What is the next step?

  • A: Perform a full recalibration of the instrument [12]. Check for and remove any residual sample from the cuvette compartment or flow cell, as contamination can cause shifts [12]. If the problem persists, the aging of the light source (e.g., deuterium or tungsten lamp) is a likely cause and should be inspected and replaced according to the manufacturer's schedule [12] [9].

Frequently Asked Questions (FAQs)

Q1: What is the most effective first step when my UV-Vis spectrophotometer shows erratic or noisy data? Begin with a blank test. Measure a pure solvent or air to establish a baseline. High or erratic blank absorbance indicates issues with background interference, contamination, or a failing light source. For a comprehensive check, ensure the absolute absorbance of the blank is less than 0.005 across the UV-Vis range [13].

Q2: How often should I calibrate my UV-Vis spectrophotometer to maintain accuracy? Regular calibration is crucial. The frequency depends on usage and application requirements. It is generally recommended to calibrate before each set of critical measurements or on a weekly basis. This practice aligns with standards such as USP 857 or Ph.Eur. guidelines [8].

Q3: My sample is too concentrated, leading to absorbance values above the reliable range. What can I do? The Beer-Lambert law assumes a linear relationship, which breaks down at high concentrations. The most straightforward solution is to dilute your sample. For best results, absorbance values should fall within the dynamic range of the instrument, ideally between 0.1 and 1.0 absorbance units [14] [8].

Q4: Why is my instrument displaying "ENERGY ERROR" or "L0" and failing to zero? These messages typically indicate low light energy reaching the detector [10]. This can be due to:

• UV Range: A failing or aged deuterium lamp that needs replacement [10].
• Visible Range: A faulty tungsten/halogen lamp [10].
• General: A physical obstruction in the light path, an empty cuvette, or a misaligned optical component [14].

Experimental Protocols & Data Presentation

Calibration and Validation Methodology

1. Wavelength Accuracy Validation Protocol

• Purpose: To verify the accuracy of the wavelength scale of the spectrophotometer.
• Procedure:
  • Place a holmium oxide filter or solution in the cuvette holder.
  • Scan the absorption spectrum across the recommended range (e.g., 240-650 nm).
  • Record the wavelengths of the characteristic absorption peaks.
  • Compare the measured peak wavelengths to the certified values provided with the standard.
• Acceptance Criteria: The deviation should be within the manufacturer's specification, typically ±1 nm or less [9].

2. Stray Light Testing Protocol

• Purpose: To detect the presence of stray light that can cause non-linearity at high absorbances.
• Procedure:
  • Use a certified stray light solution, such as a 1.2% w/v Potassium Chloride (KCl) solution for testing at 200 nm [9].
  • Fill a quartz cuvette with the solution and measure the absorbance at the specified wavelength.
  • The high absorbance of the solution will reveal the level of stray light.
• Acceptance Criteria: The measured absorbance for the KCl solution at 200 nm should be greater than 2.0, indicating low stray light [9].

Table 1: Common Spectrophotometer Error Codes and Solutions

Error Message/Code	Likely Cause	Recommended Solution
NG9 / Stray Light Fail [10]	Insufficient deuterium lamp energy; aging lamp [10].	Replace deuterium lamp [10].
E3093 Dark Signal Too Large [10]	Sample compartment lid is open during self-test [10].	Close the compartment lid and restart.
ENERGY ERROR / L0 [10]	Faulty lamp (D2 for UV, Tungsten for Vis), obstructed light path [10].	Check and replace the appropriate lamp; ensure clear light path [10].
Wavelength Check Fail [10]	Damaged or deliquesced optical filters [10].	Replace optical filters via qualified technician [10].
Absorbance Fluctuation/Drift [12]	Insufficient warm-up time, unstable environment, aging lamp [12].	Allow 30-min warm-up; control lab temperature; replace lamp if needed [12].

Table 2: Essential Research Reagent Solutions for UV-Vis Calibration & Maintenance

Reagent/Material	Function	Key Application Example
Holmium Oxide Filter/Solution [9]	Wavelength accuracy standard	Validation of wavelength scale using sharp, known absorption peaks [8].
Potassium Chloride (KCl) [9]	Stray light validation	Preparation of a 1.2% w/v solution to test for stray light in the UV region (at 200 nm) [9].
Certified Reference Materials (CRMs) [9]	Absorbance/Linearity standard	Verification of absorbance accuracy and instrument linearity, traceable to standards like NIST [8].
Spectrophotometric-Grade Solvents [9]	Sample preparation	Used for blanks and sample dilution to minimize background absorbance from impurities [9].
Quartz Cuvettes [14] [15]	Sample holder for UV range	Essential for UV measurements below 300 nm, as they are transparent to UV light [9].

Workflow Visualization

A guide to resolving UV-Vis spectrometer errors and building a robust calibration practice.

In UV-Vis spectroscopy research, calibration is not a mere preliminary step but the foundation of data integrity. The path to reliable quantification of substances—from drug compounds to nucleic acids—is often obstructed by cryptic instrument error messages. [15] Understanding and resolving these errors is crucial for any research and development professional. This guide decodes common UV-Vis spectrometer errors within the critical context of overcoming calibration challenges, providing clear troubleshooting pathways to restore instrument fidelity and ensure the accuracy of your experimental data.

Troubleshooting Guide: Common UV-Vis Error Messages

The following table summarizes frequent error messages, their primary causes, and recommended solutions to help you quickly diagnose issues.

Table 1: Troubleshooting Guide for Common UV-Vis Spectrophotometer Errors

Error Message	Primary Cause	Recommended Solution(s)	Connection to Calibration
'NG9' / 'D2-failure' / 'Energy Low' [10]	Aging or faulty deuterium lamp; insufficient energy in the UV region. [10]	Replace the deuterium lamp. If working only in the visible range, temporary use may be possible. [10]	A failing lamp compromises wavelength accuracy and photometric linearity, foundational for calibration. [16]
'Dark Signal Too Large' (E3093) [10]	High dark current, often from the sample compartment lid being open or detector issues. [10]	Ensure the sample compartment lid is fully closed. If persistent, check detector functionality. [17]	Accurate measurement requires a stable "dark" baseline; high noise invalidates the blank correction. [17]
'Wavelength Check Fail' [10]	Wavelength accuracy drift; optical filters damaged by moisture (deliquescence). [10]	Replace damaged optical filters. Perform wavelength calibration using holmium oxide or emission lines. [10] [16]	Direct failure of wavelength calibration, a prerequisite for valid absorbance measurements. [16]
'Tungsten Lamp Energy High' [10]	Malfunction in the light source switching motor or its control circuit/position sensor. [10]	Inspect and service the motor and its associated control circuits or sensors. [10]	Affects the stability and accuracy of the light source in the visible range, impacting photometric calibration.
'L0' / 'Over' (Absorbance) [10]	Low light energy, often from a faulty lamp (deuterium for UV, tungsten for visible). [10]	Check and replace the appropriate lamp. Visually confirm both lamps are lit and emitting light. [10]	Prevents the establishment of a reliable 0 Absorbance (100% T) baseline with the blank. [8]
'CAN NOT FIND LAMPW' [10]	Instrument cannot find the deuterium lamp's characteristic wavelength during startup. [10]	Check if the deuterium lamp is faulty or has reached end of life. Inspect the lamp's power supply. [10]	Prevents successful instrument self-calibration and wavelength calibration at startup. [16]
Fluctuating Absorbance/100% T [10]	Unstable signal due to a failing deuterium lamp, voltage instability, or high humidity. [10] [8]	Replace the deuterium lamp. Install a voltage stabilizer and control lab humidity. [10]	Signal instability directly translates to poor precision and inaccurate calibration curves. [8]

Logical Troubleshooting Pathway

When an error occurs, a systematic approach saves time. The following diagram outlines a general decision-making process for diagnosing UV-Vis instrument problems.

Fundamental Calibration Concepts and Error Prevention

Error messages are often symptoms of underlying calibration issues. Understanding core concepts like stray light, photometric linearity, and wavelength accuracy is key to proactive prevention.

Table 2: Key Calibration Parameters and Associated Errors

Calibration Parameter	Description & Importance	Common Errors if Uncalibrated
Wavelength Accuracy [16]	Verifies that the instrument's wavelength scale is correct. Critical for identifying substances based on their specific absorption maxima. [16]	Incorrect peak identification, leading to misidentification of analytes and inaccurate concentration calculations. [16]
Stray Light [16] [18]	Light of unintended wavelengths reaching the detector. It causes negative deviations from the Beer-Lambert law, especially at high absorbance. [16] [8]	Non-linear calibration curves and significant under-reporting of sample concentration at high absorbances (e.g., >1.2 AU). [16] [8]
Photometric Linearity [16]	Confirms the instrument's absorbance response is linear with analyte concentration, as per the Beer-Lambert law. [16]	Inaccurate quantification across the concentration range. Loss of faith in the calibration model's predictive power. [16]
Spectral Bandwidth [16] [18]	The width of the wavelength band of light passing through the sample. Affects the resolution and shape of absorption bands. [16]	Reduced ability to resolve fine spectral details and shifting of absorption maxima, impacting qualitative analysis. [16]

The Scientist's Toolkit: Essential Calibration Materials

A robust calibration protocol relies on certified reference materials. These tools help translate spectral data into reliable, quantitative information. [16] [8]

Table 3: Key Research Reagent Solutions for UV-Vis Calibration

Reagent/Material	Function	Typical Use Case
Holmium Oxide (Ho₂O₃) Filter or Solution [16]	Wavelength Accuracy Calibration. Provides a series of sharp, well-characterized absorption peaks at specific wavelengths across UV and Vis regions. [16]	To verify and calibrate the instrument's wavelength scale by scanning the holmium standard and ensuring peaks appear at their certified wavelengths (e.g., 241.5 nm, 360.8 nm). [16]
Potassium Dichromate (K₂Cr₂O₇) Solutions [19]	Photometric Absorbance/Linearity Calibration. A stable material with known absorptivity at specific wavelengths. [19]	To prepare a series of standard solutions for constructing an absorbance vs. concentration curve, verifying the instrument's photometric response is linear across the desired range.
Neutral Density Filters [16]	Photometric Linearity Check (Solid Standard). Solid filters with certified transmittance values. [16]	Provides a quick check of photometric accuracy at specific absorbance levels without the need for solution preparation, useful for routine performance verification.
Stray Light Solution (e.g., KCl) [8]	Stray Light Verification. A solution that strongly absorbs light at a specific wavelength, theoretically transmitting near-zero light. [8]	To measure stray light at a lower wavelength cutoff (e.g., 200 nm for KCl). Any signal detected is stray light, reported as a percentage of the total signal. [8]
NIST-Traceable Neutral Glass Filters [8]	Routine Performance Qualification (PQ). Certified for both wavelength and photometric values. [8]	For daily or weekly instrument checks to ensure it is performing within pre-defined specifications, as part of a quality control program.

Frequently Asked Questions (FAQs)

Q1: My instrument passed its self-test, but my absorbance values for standards are consistently double what I expect. The error is not in my solution preparation. What could be wrong? [10] A: This can point to a fundamental calibration or instrumental fault. Before assuming the worst, check two often-overlooked settings: First, verify the path length setting in your software. An incorrect setting (e.g., 10 mm instead of 1 mm) will cause a proportional error in calculated concentration. Second, ensure you are using the correct cuvette type. Standard plastic or glass cuvettes absorb UV light; quartz cuvettes are required for wavelengths below ~350 nm. Using the wrong cuvette effectively reduces the light energy reaching the detector, skewing results. [10] [15]

Q2: When I try to zero (blank) the spectrophotometer, the absorbance value drifts or fluctuates wildly. What are the most probable causes? [10] A: Fluctuating baselines are a common frustration. The causes can be triaged:

• Light Source: A failing or aged deuterium lamp is a prime suspect, as its output becomes unstable. [10]
• Environment: Voltage instability from the main power supply or high laboratory humidity can cause significant electronic drift and optical noise. Using a voltage stabilizer is recommended. [10]
• Sample Chamber: Ensure the compartment is clean and free of moisture condensation, which can scatter light. Also, confirm the compartment lid is fully closed and its seal is intact. [8]

Q3: How often should I perform a full calibration on my UV-Vis spectrophotometer, and what does it entail? [8] A: Calibration frequency depends on usage, required accuracy, and compliance needs (e.g., GLP). A full calibration, often required weekly or before a critical set of measurements, should at minimum include:

• Wavelength Accuracy: Using a holmium oxide filter or solution. [8]
• Photometric Absorbance: Using potassium dichromate or certified neutral density filters. [8]
• Stray Light: Using a suitable cutoff filter or solution. [8]
• Resolution/Bandwidth: Checking the instrument's ability to resolve fine spectral features. [16] Consult standards like USP <857> or Ph.Eur. guidelines for formal validation procedures. [8]

Q4: Can I continue to use my instrument if it fails the stray light test but I'm only measuring in the visible range? A: It depends on the severity and your application's tolerance. Stray light is most problematic at high absorbance values and at the spectral extremes of your instrument (e.g., near the UV cutoff). If you are measuring at low-to-moderate absorbances in the center of the visible range, the impact may be minimal for non-critical work. However, for any quantitative, reproducible research or drug development work, a stray light failure should be addressed, as it indicates a fundamental issue with the optical path (e.g., dirty or degraded components) that could affect all measurements. [16] [8]

Troubleshooting Guides

Guide 1: Addressing Inaccurate Absorbance Readings Due to Environmental Factors

Problem: Absorbance readings are inconsistent, non-reproducible, or show a drifting baseline during UV-Vis spectroscopy analysis.

Primary Cause: Uncontrolled temperature and humidity in the laboratory environment are common causes of these issues. Temperature fluctuations can alter the physical properties of the sample and instrument stability, while humidity can affect both the sample's composition and the instrument's optical components [8] [20] [21].

Investigation and Diagnosis:

• Verify Environmental Conditions: Use a calibrated thermometer and hygrometer to record the temperature and relative humidity at the instrument location. Compare these values to the manufacturer's recommended operating range (often 21–25 °C and 65% ±2% relative humidity for optimal performance) [21].
• Check for Inconsistent Readings: Take multiple, rapid measurements of the same stable sample. If the readings vary by more than the instrument's specified repeatability, environmental interference is likely [21].
• Inspect Instrument Physical State: Check for physical signs of environmental damage, such as a cloudy aperture lens due to high humidity or oxidation on internal parts [21].

Solution:

• Control the Laboratory Environment:
  • Operate the spectrophotometer in a temperature-controlled room with stability within ±1 °C.
  • Maintain relative humidity within the instrument's specified range, ideally between 45% and 65% to prevent sample and equipment degradation [8] [21].
  • Ensure the instrument is away from direct sunlight, heating vents, and air conditioning drafts, as these can cause localized temperature fluctuations [21].
• Allow for Instrument Equilibration: If the instrument has been moved or the room environment has changed, allow sufficient time (as per manufacturer instructions) for the spectrophotometer to acclimate to the new conditions before use.
• Implement Good Measurement Practices:
  • Always use a blank that matches the sample's solvent and temperature to correct for baseline noise [3].
  • For critical measurements, consider using a spectrophotometer equipped with a temperature-controlled sample holder.

Guide 2: Managing Sample-Related Errors Induced by Temperature and Humidity

Problem: Samples exhibit shifting absorbance peaks, changes in spectral shape, or altered sensitivity, leading to inaccurate concentration measurements.

Primary Cause: The sample itself is sensitive to environmental conditions. Temperature changes can shift the position and shape of absorption peaks [22] [20], while humidity can cause hydration or desiccation, permanently altering the sample's chemical form and its absorbance properties [22].

Investigation and Diagnosis:

• Review Sample History: Determine if the sample material is known to be hygroscopic (absorbs moisture) or thermally sensitive. Note that some materials, like radiochromic films, can undergo irreversible changes in absorbance maxima and sensitivity due to hydration history [22].
• Perform a Stability Test: Monitor the absorbance of a standard solution over time under normal lab conditions. A gradual drift indicates sample degradation or interaction with the environment.

Solution:

• Standardize Sample Handling:
  • Prepare and analyze samples in a consistent, climate-controlled environment.
  • For hygroscopic materials, store samples in a desiccator and minimize exposure to ambient air during preparation and measurement.
  • Use sealed cuvettes with tight-fitting caps to prevent solvent evaporation or moisture absorption during scanning.
• Control Sample Temperature:
  • For studies where temperature dependence is a variable, use a temperature-controlled cuvette holder.
  • Allow all standards and samples to equilibrate to the same temperature before measurement. As shown in the table below, even small temperature variations can cause significant measurement errors.
  • For routine analysis, maintaining a stable room temperature is critical.

Table 1: Quantitative Effects of Temperature Variation on Spectrophotometer Performance

Temperature Variation	Observed Impact on Measurement	Source
Variation of 4°C in room temperature	Color measurement shift of 0.4 dE (1.75x the instrument's variation capability)	[21]
Increase from 22°C to 38°C	Linear downshift in the spectral peak of maximum absorbance (λmax)	[22]
Temperature fluctuations	"Jiggling" of molecules, leading to non-reproducible absorbance readings	[20]

Table 2: Effects of Humidity on Samples and Equipment

Factor	Observed Impact	Source
High Humidity	Can alter the composition of hygroscopic samples; causes oxidation and clouding of instrument optics	[21]
Changes in Hydration	Shifts absorbance peaks and reduces sensitivity to analyte in some materials; effects can be irreversible	[22]
Relative Humidity outside 45%-85% range	Increased risk of errors; optimal operation is at 65% +/- 2%	[21]

Frequently Asked Questions (FAQs)

Q1: What are the ideal temperature and humidity conditions for a UV-Vis spectrophotometer? A: For optimal performance, most spectrophotometers should be operated in a stable environment between 21–25 °C with a relative humidity of 65% ±2%. The operating range for humidity is typically 20% to 85%, but staying near the optimum prevents errors, especially with hygroscopic samples [21].

Q2: Why do my absorbance readings change even when the room temperature is stable? A: Localized effects can create microclimates around the instrument. Ensure the spectrophotometer is not in direct sunlight, which can heat the device itself, and keep it away from drafts, electronic equipment that generates heat, or external walls. Also, verify that your samples have equilibrated to the room temperature [21].

Q3: Can humidity affect my results even if my samples are in sealed cuvettes? A: Yes, while sealed cuvettes protect the sample during measurement, samples are often prepared in the open lab environment. If the laboratory humidity is high, hygroscopic samples or solvents can absorb moisture during the preparation process, changing their concentration or chemical properties before they are even sealed in the cuvette [22] [8].

Q4: How often should I calibrate my instrument to account for environmental drift? A: Regular calibration is essential. It is recommended to perform a wavelength and photometric accuracy calibration weekly or before a critical set of measurements. This frequency should be increased if the instrument is moved or subjected to significant environmental changes [8].

Experimental Protocols

Protocol: Evaluating the Effect of Temperature on a Sample's Absorbance Spectrum

1. Purpose and Principle To quantitatively determine the temperature dependence of a sample's UV-Vis absorption spectrum. Temperature changes can cause shifts in the wavelength of maximum absorbance (λmax) and alterations in absorbance intensity due to changes in molecular energy states and solvation [22] [20].

2. Research Reagent Solutions and Essential Materials

Table 3: Key Reagents and Materials for Temperature Studies

Item	Function/Specification
High-Purity Solvent	A solvent with low UV-Vis absorbance in the region of interest (e.g., HPLC-grade water, acetonitrile).
Analyte Standard	A purified, stable compound for analysis.
Temperature-Controlled Cuvette Holder	A Peltier or water-jacketed holder that precisely controls and monitors sample temperature.
Sealed Cuvettes	Cuvettes with tight-fitting lids to prevent evaporation at elevated temperatures (e.g., 1 cm pathlength, quartz).
Calibrated Thermometer	A traceable thermometer to verify the temperature readout of the cuvette holder.

3. Step-by-Step Workflow

4. Data Analysis and Interpretation Plot the absorbance spectra at different temperatures on a single graph. Note the direction and magnitude of any shifts in the λmax. Plot the absorbance at a fixed wavelength (or λmax) against temperature to quantify the temperature coefficient. This data is critical for developing methods that are robust to minor lab temperature fluctuations.

Visualization: Environmental Control Workflow

The following diagram summarizes the logical workflow for diagnosing and correcting environmental issues in UV-Vis spectroscopy to ensure robust calibration and accurate results.

Within the context of overcoming calibration challenges in UV-Vis spectroscopy research, recognizing the failure signs of key optical components is fundamental to data integrity. Degradation of the light source, filters, or optical systems introduces systematic errors that can compromise photometric accuracy and wavelength precision, directly impacting research outcomes in pharmaceutical development and analytical science. This guide provides targeted troubleshooting to identify and address these failures.

Common Symptoms and Their Likely Causes

Before delving into specific components, use this table to connect observed instrument problems with their potential faulty components.

Observed Symptom	Possible Degraded Component
Fluctuating or noisy absorbance readings [23]	Spectrophotometer lamp approaching end-of-life [23]
Unusual peaks or a noisy baseline in spectra [5]	Dirty cuvettes, contaminated samples, or contaminated detector optics [23] [5]
Drifting wavelength accuracy [23]	Filter degradation or instrument instability [23] [24]
Reductions in signal intensity or unexpected absorption	UV-induced degradation of optical diffusers or filters [25] [24]
Non-linearity at high absorbance values [8]	Stray light or aging detector [8]

Troubleshooting Guides

Spectrophotometer Lamps

Q: What are the signs of lamp failure, and how can I confirm it?

Lamp degradation is a primary source of instability in UV-Vis spectroscopy. Signs include fluctuating or drifting absorbance readings, increased baseline noise, failure to zero the instrument, and reduced light output at specific wavelengths [23] [8].

Diagnostic and Resolution Protocol:

• Check Usage Hours: Log and review the lamp's total operational hours. Deuterium lamps typically last 1,000–3,000 hours, while xenon lamps are often rated for about 500 hours [23].
• Visual Inspection: If possible (and following manufacturer guidelines), inspect the lamp for any black deposits on the glass envelope or a fractured housing, which indicate end-of-life.
• Replace Proactively: If usage is near or beyond the manufacturer's rated lifespan and symptoms are present, replacement is the first and most likely solution [23].
• Verify Baseline: After replacement, allow the new lamp to warm up for the recommended time (often 20 minutes or more) before verifying baseline stability with a blank [5].

Optical Filters and Diffusers

Q: How does filter degradation manifest, and how can it be distinguished from measurement error?

Optical filters and diffusers can degrade over time, especially with prolonged UV exposure, leading to changes in their transmission and reflectance properties [25] [24]. This can cause wavelength accuracy drift and photometric inaccuracies [23].

Diagnostic and Resolution Protocol:

• Visual Inspection: Examine the filter under a bright white light for any cosmetic changes, such as haziness, discoloration (yellowing), or delamination, which often correlate with performance degradation [26] [27] [28].
• Cross-Check with Reference: Measure the filter's performance on a calibrated spectrophotometer and compare the results to the manufacturer's original specifications or a known-good reference filter [26]. Be aware that manufacturing variances can cause slight differences between individual filters.
• Control Measurement Conditions: Ensure the filter is measured at a 0-degree angle of incidence, as even a slight tilt can cause significant wavelength shifts [26]. Use a baffle to block stray light during testing.
• Replace if Degraded: If the measured transmission or reflectance shows significant deviation from specifications (e.g., a "blocked" wavelength band now transmits a high percentage of light), the filter should be replaced [26].

General Optical System

Q: What are the signs of general optical component degradation, and how do I troubleshoot them?

The optical path includes components like mirrors, gratings, and the detector. Degradation here often manifests as increased stray light, baseline shifts, or a general loss of sensitivity [8].

Diagnostic and Resolution Protocol:

• Inspect for Contamination: Check the detector optics and sample compartment for dust, debris, or signs of chemical contamination. Clean according to the manufacturer's instructions [23] [5].
• Check for Stray Light: Use appropriate cutoff filters to test for stray light, particularly at the limits of the instrument's wavelength range where this error is most pronounced [8] [16].
• Verify Sample Holders: Ensure that cuvettes are pristine, free of scratches, fingerprints, and contamination, and are made of the correct material (e.g., quartz for UV measurements) [5].
• Schedule Service: If basic troubleshooting does not resolve the issue, the problem may lie with the internal optics or detector electronics, requiring a qualified service technician [23].

Essential Experimental Protocols for Verification

Protocol 1: Verifying Lamp Stability and Photometric Performance

This procedure uses a calibration kit to diagnose early instrument instability.

• Objective: To detect wavelength accuracy drift and photometric instability caused by a degrading lamp or detector [23].
• Materials: UV-Vis Calibration Kit (e.g., Chemical Solutions kit with stable reference materials), matched quartz cuvettes [23] [5].
• Method:
  • Allow the instrument and lamp to warm up for at least 20 minutes [5].
  • Run a baseline correction with a blank solvent in a clean cuvette.
  • Measure the absorbance of the calibration standard at its specified wavelengths.
  • Repeat this measurement over time (e.g., daily for one week) while tracking lamp usage hours.
• Interpretation: A progressive drift in the measured absorbance values or wavelength peak positions of the standard indicates instrument instability, most commonly from a lamp nearing end-of-life [23].

Protocol 2: Assessing Filter Performance

This method outlines a relative check of filter integrity using a halogen light source and spectrometer.

• Objective: To characterize the transmission profile of an optical filter and compare it to its expected performance [26].
• Materials: Halogen light source, calibrated spectrometer, baffle tube, filter holder [26].
• Method:
  • Let the halogen light source warm up for stability [26].
  • Take a baseline intensity measurement (I~0~) of the light source directly overhead, using a baffle to block ambient light.
  • Place the filter in the light path, ensuring it is perpendicular to the beam.
  • Measure the transmitted light intensity (I).
  • Calculate transmission as T = I / I~0~ [26].
• Interpretation: Plot the transmission spectrum. Compare it to the manufacturer's published data. Significant deviations, such as blocked bands transmitting ~50% of light or shifts in transmission peaks, suggest filter degradation or a faulty sample [26].

The Scientist's Toolkit: Key Research Reagent Solutions

Item	Function in Troubleshooting
UV-Vis Calibration Kit	Contains stable reference materials to verify wavelength accuracy, photometric accuracy, and baseline stability [23].
Certified Reference Filters (e.g., Holmium Oxide)	Used for precise wavelength calibration checks across a range of peaks [8] [16].
Matched Quartz Cuvettes	Ensure accurate path length and high transmission across UV and visible wavelengths; must be clean and scratch-free [5].
Stray Light Solution (e.g., high-concentration KCl)	A solution that blocks all light at a specific wavelength below a cutoff; used to quantify the level of stray light in the system [8] [16].
Spare Deuterium/Xenon Lamp	A known-good spare lamp is essential for proactive replacement and as a first step in diagnosing instability [23].

Frequently Asked Questions (FAQs)

Q1: How often should I replace my UV-Vis spectrophotometer lamp as part of preventative maintenance? Replace lamps proactively based on the manufacturer's specified lifespan and your logged usage hours. Deuterium lamps generally last 1,000–3,000 hours, while xenon lamps last around 500 hours. Keeping a usage log is the best practice [23].

Q2: Can optical filters really degrade just from ambient laboratory light? Yes, long-term exposure to ambient light, particularly UV components, can cause photodegradation in polymers and some coating materials, leading to yellowing or transmission changes over many years [27] [24].

Q3: My samples are sometimes cloudy. How does this affect my data, and what can I do? Cloudy or particulate-filled samples scatter light, which violates the Beer-Lambert law and leads to inaccurate absorbance readings. The best solution is to filter the sample before measurement or use centrifugation to clarify it [8].

Diagnostic Workflows for Component Failures

Troubleshooting Logic Pathway

The following diagram outlines a systematic approach to diagnosing component failures based on observed symptoms.

Filter Verification Protocol

This workflow details the key steps for verifying the performance of an optical filter, as described in the experimental protocol.

Advanced Calibration Protocols and Method Development for Complex Samples

Step-by-Step Guide to Routine Calibration and Performance Verification

This guide provides a standardized procedure for the routine calibration and performance verification of a UV-Vis spectrophotometer. Regular verification is crucial for ensuring the accuracy, reliability, and reproducibility of spectroscopic data, which is fundamental to research and drug development. The process outlined below aligns with standard practices and pharmacopeial guidelines to overcome common calibration challenges [11] [29] [30].

Performance Verification Procedures

Performance verification ensures your instrument meets specified operational standards. The key parameters to check are wavelength accuracy, photometric (absorbance) accuracy, stray light, and resolution [29] [30].

Control of Wavelength Accuracy

Purpose: To verify that the spectrophotometer accurately reports the wavelength of light [30]. Method using Holmium Oxide Filter: Many modern instruments have built-in tests for wavelength accuracy using holmium oxide filters or similar [29].

• Procedure:
  • Ensure nothing is in the optical path.
  • Access the instrument's maintenance mode (e.g., MODE > F3 > '1').
  • Start the automated test.
  • The instrument will print or display the results.
• Acceptance Criteria: The observed peaks should be within ±0.3 nm of the standard values (e.g., 656.1 nm and 486.0 nm) [29].

Control of Absorbance (Photometric Accuracy)

Purpose: To verify the accuracy of the absorbance scale [30]. Method using Potassium Dichromate Solution [29]:

• Reagent: Potassium dichromate (K₂Cr₂O₇), dried at 130°C to constant weight.
• Standard Solution: Accurately weigh between 57.0 mg and 63.0 mg of potassium dichromate. Dissolve and dilute to 1000 mL with 0.005M Sulphuric Acid.
• Procedure:
  • Measure the absorbance of the prepared solution at the critical wavelengths: 235 nm, 257 nm, 313 nm, and 350 nm.
  • Calculate the specific absorbance A(1%, 1 cm) for each wavelength using the formula: A(1%, 1 cm) = (Measured Absorbance × 10000) / Weight of potassium dichromate (in mg)
• Acceptance Criteria: The calculated A(1%, 1 cm) values must fall within the specified limits [29]:

Wavelength (nm)	A(1%, 1 cm) Limit
235	122.9 to 126.2
257	142.8 to 145.7
313	47.0 to 50.3
350	105.6 to 108.2

Limit of Stray Light

Purpose: To ensure that scattered light outside the intended wavelength does not interfere with absorbance measurements [30]. Method using Potassium Chloride Solution [29]:

• Reagent: Potassium Chloride (KCl).
• Standard Solution: Prepare a 1.2% w/v solution of KCl in water.
• Procedure:
  • Using water as a blank, measure the absorbance of the KCl solution at wavelengths between 198 nm and 202 nm.
• Acceptance Criteria: The measured absorbance must be greater than 2.0 at each wavelength [29].

Resolution Power

Purpose: To verify the instrument's ability to distinguish between closely spaced absorbance peaks [30]. Method using Toluene in Hexane [29]:

• Reagent: Toluene and hexane.
• Standard Solution: Prepare a 0.02% v/v solution of toluene in hexane.
• Procedure:
  • Record the spectrum of the solution from 260 nm to 420 nm.
  • Note the absorbance values at the maximum (approx. 269 nm) and the minimum (approx. 266 nm).
  • Calculate the ratio: Absorbance at 269 nm / Absorbance at 266 nm.
• Acceptance Criteria: The ratio must not be less than 1.5 [29].

Troubleshooting Common Calibration Issues

Despite careful procedure, issues can arise. The table below addresses common problems and their solutions.

Issue	Possible Cause	Solution
Drifting absorbance readings	Loose electrical connections; contamination in the optical path [11].	Check and secure all connections. Gently clean the optical components, such as the detector, with a mild solvent [11].
Noisy or erratic absorbance values	Problem with the light source or detector [11].	Allow the lamp to warm up for the recommended time (e.g., 20 minutes for tungsten halogen lamps) [5]. If the problem persists, consult the manufacturer's manual for further diagnostics [11].
Instrument consistently fails calibration at a specific wavelength	Wavelength drift or incorrect calibration [11].	Recalibrate specifically at the problematic wavelength using a fresh reference standard solution [11].
Baseline noise or drift	Instrument instability; environmental vibrations or temperature fluctuations [3].	Ensure the instrument is on a stable surface, away from drafts and electrical interference. Always run a proper blank measurement to correct for baseline noise [3].
Inaccurate wavelength or absorbance	Out-of-calibration instrument; improper sample handling [3].	Perform a full performance verification. Ensure cuvettes are clean, of the correct pathlength, and properly aligned in the holder [3].
Unexpected peaks in spectrum	Contaminated sample or cuvette; unclean substrates [5].	Always handle cuvettes with gloved hands. Thoroughly wash and rinse cuettes and substrates before use. Check sample for purity [5].

Frequently Asked Questions (FAQs)

Q1: How often should I perform a full performance verification on my UV-Vis spectrophotometer? A: A full verification should be conducted once a month or according to your laboratory's quality control schedule and SOPs [29]. Daily or weekly checks of absorbance and wavelength using a single standard may also be performed.

Q2: My sample is very concentrated and the absorbance is off-scale. What can I do? A: For concentrated samples, reduce the concentration by dilution. If dilution is not feasible, use a cuvette with a shorter pathlength (e.g., 1 mm instead of 10 mm) to reduce the effective absorbance [5].

Q3: Why is it important to allow the lamp to warm up? A: Light sources, especially tungsten halogen lamps, require time to stabilize their output. Without a proper warm-up period (typically 20 minutes), you may experience variable illumination, leading to inaccurate and non-reproducible absorbance readings [5].

Q4: What is the ideal absorbance range for the most accurate measurements? A: For optimal accuracy and to adhere to the linear range of the Beer-Lambert law, keep absorbance readings between 0.1 and 1.0 absorbance units. Absorbance values above 1.0 can become unstable and non-linear [31].

The Scientist's Toolkit: Essential Research Reagents and Materials

The following table details key materials required for the performance verification procedures.

Item	Function
Potassium Dichromate	A certified reference material used for verifying the photometric (absorbance) accuracy of the spectrophotometer at specific wavelengths [29].
Holmium Oxide Filter	A solid-state reference standard with sharp, known absorption peaks used for validating the wavelength accuracy of the instrument [29].
Potassium Chloride	Used to prepare an aqueous solution for stray light testing. At high concentrations, it blocks specific UV light, making any detected signal a measure of stray light [29].
Toluene in Hexane	This solution has a characteristic fine absorption spectrum used to check the resolving power of the spectrophotometer, ensuring it can distinguish closely spaced peaks [29].
Quartz Cuvettes	Essential sample holders for UV-Vis measurements. Quartz is required for UV range work due to its high transmission of UV and visible light [5].
0.005M Sulphuric Acid	The solvent specified for preparing the potassium dichromate standard solution to ensure proper pH and ionic strength for accurate absorbance values [29].

Workflow Diagram

The diagram below summarizes the logical workflow for the performance verification process.

In UV-Vis spectroscopy research, the journey to reliable data begins long before a sample is placed in the instrument. Improper sample preparation is a leading cause of analytical errors, accounting for as much as 60% of spectroscopic inaccuracies [32]. For researchers and drug development professionals, mastering sample preparation is not merely a procedural step; it is the foundational practice that ensures data integrity, protects precious resources, and upholds the validity of scientific conclusions. This guide provides targeted troubleshooting and FAQs to help you overcome the twin challenges of contamination and matrix effects, directly supporting the broader goal of overcoming calibration challenges in UV-Vis spectroscopy.

Understanding the Core Challenges

In the context of UV-Vis spectroscopy, contamination and matrix effects represent two distinct but equally detrimental threats to sample integrity.

Contamination refers to the introduction of unwanted foreign substances into your sample. These can originate from improperly cleaned tools, impure reagents, or the laboratory environment itself. The consequences often manifest as false positives, skewed absorbance readings, and an inability to reproduce results [33].

Matrix effects are more subtle interferences caused by other components within the sample itself. These components can alter the way your analyte interacts with light, leading to inaccurate absorbance measurements. Effects can include ion suppression or enhancement, and are particularly problematic in complex biological or environmental samples [34].

The table below summarizes the key differences and impacts:

Feature	Contamination	Matrix Effects
Origin	External sources (tools, reagents, environment) [33]	Internal sample components (co-eluting compounds, salts, proteins) [34]
Primary Effect	Introduces foreign substances [33]	Alters analyte's interaction with UV-Vis light [34]
Impact on Results	False positives/negatives, skewed absorbance, poor reproducibility [33]	Ion suppression/enhancement, inaccurate quantification [34]
Ease of Detection	Often identifiable through baseline shifts or unexpected peaks [3]	Can be difficult to detect without specific tests (e.g., post-column infusion) [34]

Troubleshooting Common Sample Preparation Issues

Here are some of the most frequently encountered problems in sample preparation, along with their solutions.

Problem: Inconsistent or Noisy Absorbance Readings

• Possible Cause 1: Particulate Contamination or Bubbles. Undissolved particles or tiny bubbles in the cuvette can scatter light, causing a noisy baseline and inaccurate, high absorbance readings [3].
  • Solution: Filter your sample using a 0.45 µm or 0.2 µm syringe filter (e.g., PTFE membrane) to remove particulates. For bubbles, degas solvents by sonication or gentle agitation before use [32] [3].
• Possible Cause 2: Improper Cuvette Handling. Fingerprints, scratches, or residues on the cuvette's optical surface will scatter light and introduce errors [3].
  • Solution: Always handle cuvettes by the non-optical sides. Clean cuvettes meticulously with a lint-free tissue and an appropriate solvent before each use. Ensure all cuvettes in a set have identical pathlengths (e.g., 1 cm) [3].

Problem: Sample Degradation During Preparation or Analysis

• Possible Cause: Exposure to Light or Heat. Many analytes, especially light-sensitive compounds, can degrade when exposed to UV-Vis light for extended periods or if stored improperly [3].
  • Solution: Minimize light exposure during preparation. Use amber or opaque vials for light-sensitive samples. Prepare samples immediately before analysis and limit the time they reside in the spectrometer. Store samples in the dark at controlled, low temperatures if necessary [33] [3].

Problem: Unreliable Calibration and Quantification

• Possible Cause 1: Solvent Interference. The solvent used to dissolve your analyte may itself absorb light in the spectral region of interest, leading to a high background and masking the analyte's signal [3].
  • Solution: Select an appropriate solvent with a low "cutoff wavelength" outside your analytical range. Common choices include high-purity water (cutoff ~190 nm), acetonitrile, and methanol. Always use a blank containing the same solvent for baseline correction [32] [3].
• Possible Cause 2: Matrix Effects from Complex Samples. In samples like biological fluids or environmental extracts, other dissolved components can alter the analyte's absorbance properties, leading to suppression or enhancement of the signal [34].
  • Solution: Dilute the sample to reduce the concentration of interfering compounds, provided the analyte concentration remains within the detectable range [34]. For more severe cases, employ a sample clean-up step such as solid-phase extraction (SPE) to selectively isolate the analyte from the matrix [34].

Frequently Asked Questions (FAQs)

1. What is the single most important step to avoid contamination during homogenization? The choice of homogenizer probe is critical. While durable, stainless steel probes require meticulous cleaning between samples, which is time-consuming and carries a high risk of cross-contamination. Using disposable plastic probes or hybrid probes (with a disposable plastic component) can virtually eliminate this risk and significantly improve workflow efficiency [33].

2. How can I definitively determine if my sample is affected by matrix effects? A highly effective qualitative method is the post-column infusion technique. It involves infusing a standard of your analyte into the HPLC eluent while injecting a prepared blank sample extract. A dip or rise in the baseline signal indicates regions of ion suppression or enhancement caused by matrix components co-eluting with your analyte [34].

3. My sample is too concentrated and gives an absorbance reading outside the linear range. What should I do? The safest approach is to dilute the sample and re-measure. Prepare the dilution using the same solvent as the blank to maintain matrix consistency. Avoid simply using a shorter pathlength cuvette unless you have validated that it does not introduce other errors. Always prepare samples within the instrument's validated linear dynamic range for accurate quantification [3].

4. How often should I calibrate my UV-Vis spectrophotometer to ensure accurate wavelength and photometric accuracy? Perform frequent calibration using certified reference materials (e.g., holmium oxide filters for wavelength accuracy). The exact frequency depends on usage and required precision, but it should be part of routine weekly or monthly maintenance, and always before a critical set of measurements. Regularly monitor peak positions of known standards to ensure ongoing wavelength accuracy [3].

Experimental Protocols for Detection and Mitigation

Protocol 1: Assessing Matrix Effects via Post-Extraction Spike Method

This quantitative method helps you measure the extent of ionization suppression or enhancement in your sample [34].

• Prepare a standard solution of your analyte in a neat mobile phase or a simple solvent at a known concentration.
• Prepare a blank matrix sample (e.g., blank plasma, urine, or a surrogate) and subject it to your entire sample preparation and extraction protocol.
• Spike the extracted blank matrix with the same amount of analyte used in Step 1.
• Analyze both solutions using your UV-Vis spectrophotometer and compare the absorbance signals.
• Calculate the Matrix Effect (ME%) using the formula:
  • ME% = (Absorbance of spiked matrix / Absorbance of standard solution) × 100%
  • An ME% < 100% indicates ion suppression; > 100% indicates ion enhancement [34].

Protocol 2: Minimizing Contamination During Solid Sample Preparation

This workflow is crucial for preparing solid samples like powders or tissues for analysis.

The Scientist's Toolkit: Essential Research Reagent Solutions

The following table lists key reagents and materials critical for preventing contamination and matrix effects in your sample preparation workflow.

Item	Function & Importance	Key Considerations
High-Purity Solvents	Dissolves analyte; forms the sample matrix. Impurities are a major source of contamination and high background noise [32] [3].	Use "HPLC-grade" or "spectroscopic-grade" solvents with a UV cutoff wavelength outside your analysis range [32].
Disposable Homogenizer Probes	Homogenizes tissues/cells without cross-contamination risk [33].	Ideal for high-throughput labs. Balance cost vs. convenience. For tough samples, consider hybrid (stainless/plastic) probes [33].
Membrane Filters (PTFE)	Removes particulates that cause light scattering from liquid samples [32] [35].	Use 0.45 µm for general use; 0.2 µm for ultratrace analysis. Ensure chemical compatibility [32].
Certified Reference Materials	Calibrates spectrometer for wavelength and photometric accuracy [3].	Essential for validating instrument performance and method accuracy. Use traceable standards (e.g., NIST) [3].
Matrix-Matched Calibration Standards	Compensates for matrix effects by matching the standard's background to the sample's [34].	Requires a reliable blank matrix. Best practice for achieving accurate quantification in complex matrices [34].

Key Takeaways for Robust Sample Preparation

• Vigilance is Cheaper than Failure: Up to 75% of laboratory errors occur in the pre-analytical phase [33]. Investing time in meticulous sample preparation prevents the far greater cost of wasted experiments and invalidated research.
• Know Your Matrix: The complexity of your sample matrix dictates your preparation strategy. Simple dilution can often mitigate effects, but complex biological samples may require sophisticated clean-up or standard addition methods [34].
• Validation is Non-Negotiable: Always validate your cleaning procedures for reusable labware and your methods for compensating for matrix effects. Techniques like the post-extraction spike method provide the data needed to trust your results [34].

By integrating these protocols, tools, and troubleshooting strategies into your daily practice, you will build a robust foundation for your UV-Vis spectroscopy research, ensuring that your data is both accurate and reliable.

Troubleshooting FAQ: Common UV-Vis Spectroscopy Issues

The following table addresses common instrumental problems and their solutions, which are crucial for overcoming calibration challenges in research.

Problem Description	Possible Causes	Recommended Solutions
Fails stray light/wavelength test with "NG9" or "Error Code = 24" [10]	Aged deuterium lamp with insufficient energy in the UV region [10]	Replace the deuterium lamp. For visible light-only work, temporary continued use is possible [10].
"E3093 dark signal too large" error [10]	Sample compartment lid is open during self-test [10]	Close the sample compartment lid [10].
"ENERGY ERROR" or failure at "WL-Calibrate" [10]	Faulty deuterium lamp, lamp not igniting, or problem with lamp power supply [10]	Check if the deuterium lamp is lit. If replacing the lamp doesn't work, inspect the power supply circuitry [10].
Readings are unstable, noisy, or stuck at high absorbance (e.g., >3.0) [36]	1. Sample concentration is too high.2. Weak or burned-out light source.3. Obstructed or unclear light path [36].	1. Dilute the sample to achieve an absorbance between 0.1 and 1.0 [36].2. Check lamp output in uncalibrated mode; replace if faulty [36].3. Ensure the cuvette is clean, correctly aligned, and compatible (e.g., quartz for UV) [36].
"Tungsten lamp energy high" fault or tungsten lamp not lighting [10]	1. Fault in light source switching motor or its control circuit.2. Blown power supply component [10].	Inspect for electrical issues. Check motor, position sensor, and power supply components. May require professional service [10].
"L0" error or "over" reading in Absorbance mode [10]	Low light energy. Deuterium lamp (if in UV) or tungsten lamp (if in visible) is faulty or at end of life [10].	Replace the appropriate lamp. Visually check if lamps are lit [10].
Inconsistent readings or drift [37]	1. Aging lamp causing fluctuations.2. Insufficient warm-up time.3. Need for calibration [37].	1. Replace aging lamp.2. Allow instrument to stabilize before use (warm-up).3. Perform regular calibration with certified standards [37].
Connection failure with "CAN NOT FIND LAMPW" message [10]	Instrument cannot find the light source for wavelength calibration during startup [10].	Check the deuterium lamp and its power supply. The lamp may be faulty [10].
Screen is garbled or instrument freezes [10]	Display board failure or issue with a program chip [10].	Try reseating internal chips on the mainboard and display board. May require professional repair [10].
Readings are suddenly ~2x higher than expected [10]	Error in sample or standard solution preparation [10].	Review and repeat the solution preparation protocol [10].

Experimental Protocols for Specific Analytes

Protocol 1: Hemoglobin Quantification via Sodium Lauryl Sulfate (SLS) Method

This protocol is identified as a preferred method for its specificity, ease of use, cost-effectiveness, and safety compared to cyanmethemoglobin-based methods [38].

• Principle: SLS binds to hemoglobin, forming a stable complex that can be measured spectrophotometrically.
• Reagents:
  • SLS Solution
  • Phosphate Buffered Saline (PBS) or similar buffer
  • Hemoglobin standard solutions for calibration
• Procedure:
  • Prepare a set of hemoglobin standard solutions across the desired concentration range (e.g., for bovine Hb extracted from RBCs) [38].
  • Mix a fixed volume of standard or unknown sample with the SLS reagent.
  • Incubate the mixture to allow for complex formation (follow specific method details for time and temperature).
  • Measure the absorbance of the solutions using a UV-Vis spectrophotometer.
  • Construct a calibration curve of absorbance versus hemoglobin concentration and use it to determine the concentration of unknown samples.
• Critical Considerations:
  • Always analyze the absorbance spectrum of your sample and the carrier components first to check for potential interferences [38].
  • Ensure absorbance values for measurements fall within the reliable range of the instrument, ideally between 0.1 and 1.0 absorbance units [36].

Protocol 2: Quantification of True-to-Life Nanoplastics in Stock Suspensions

This protocol uses UV-Vis spectroscopy as a rapid, accessible, and non-destructive tool for quantifying nanoplastics, especially when sample volumes are limited [39] [40].

• Principle: Nanoplastics in suspension scatter and absorb light, allowing for their quantification via UV-Vis spectroscopy. The extinction signal is correlated with concentration.
• Reagents:
  • True-to-life nanoplastics (e.g., generated from fragmented polystyrene items) [40].
  • MilliQ water or other appropriate suspension medium.
• Procedure:
  • Generate Test Nanoplastics: Use a top-down fragmentation approach (e.g., cryogenic mechanical fragmentation with an ultracentrifugal mill) to produce realistic, polydisperse nanoplastics from plastic items [40].
  • Prepare Stock Suspension: Suspend the generated nanoplastic powder in MilliQ water (e.g., 0.1 g of powder in 30 mL water) and separate the nanosized fraction via sequential centrifugation [40].
  • Measure Absorbance: Use a microvolume UV-Vis spectrophotometer to measure the absorbance (extinction) of the stock nanoplastic suspension. This conserves scarce sample material and allows for sample recovery [40].
  • Data Interpretation: Quantify the nanoplastic concentration based on the absorbance measurement. Note: UV-Vis may underestimate concentration compared to mass-based techniques like Py-GC/MS or TGA, but it provides consistent results in terms of order of magnitude and reliable trends [40].
• Critical Considerations:
  • This protocol is optimized for unpigmented polystyrene nanoplastics. Pigments from colored plastics can interfere with the UV-Vis signal [40].
  • UV-Vis is most effective as part of a multitechnique validation approach, corroborated with techniques like nanoparticle tracking analysis (NTA), Py-GC-MS, or TGA [40].

The Scientist's Toolkit: Essential Research Reagent Solutions

Item	Function / Application
Quartz Cuvettes	Essential for measurements in the ultraviolet (UV) range, as standard plastic and glass cuvettes absorb UV light [36].
UV-Compatible Plastic Cuvettes	A lower-cost alternative to quartz for UV-Vis measurements, though may introduce more noise than quartz [36].
Deuterium Lamp	The standard light source for the UV region. A consumable item that requires replacement when energy output drops [10].
Tungsten Lamp	The standard light source for the visible region. A consumable item that can fail or cause errors [10].
Sodium Lauryl Sulfate (SLS)	A key reagent for the specific, safe, and effective quantification of hemoglobin in research on hemoglobin-based oxygen carriers (HBOCs) [38].
Certified Reference Standards	Necessary for regular calibration of the spectrophotometer to ensure ongoing accuracy and traceability of measurements [37].

Workflow Diagram: Method Selection & Validation

Workflow Diagram: Nanoplastic Quantification

Troubleshooting Guides

Guide 1: Troubleshooting Inaccurate Absorbance Readings

Problem: Absorbance readings are inconsistent, drifting, or do not match expected values for a known standard [41] [13].

Troubleshooting Step	Action & Verification
Verify Wavelength Accuracy	Measure a reference standard with a known and sharp absorbance peak (e.g., holmium oxide filter). Ensure the instrument's recorded λmax matches the certified value [42].
Inspect and Clean Cuvettes	Check for scratches, air bubbles, or contaminants. Clean with appropriate solvent, handle with gloves, and ensure the clear optical faces are fingerprint-free [5] [43].
Check Solvent Compatibility	Confirm the solvent does not absorb significantly at the analysis wavelength. Use high-purity solvents and ensure they are chemically compatible with the cuvette material [42].
Perform Blank Correction	Re-measure the blank (pure solvent) to establish a true zero baseline. A high or erratic blank indicates contamination or solvent issues [43] [13].
Validate Path Length	Use a calibrated cuvette of the correct path length. For high concentration samples, switch to a shorter path length to bring absorbance into the ideal range (0.1-1.0) [5] [43].
Inspect Instrument Source	Check the lamp hours. An aging lamp (especially UV) can cause low light intensity, noisy signals, and drift. Replace the lamp if necessary [41].

Guide 2: Troubleshooting Poor Spectral Quality and Shape

Problem: Spectra are noisy, have a drifting baseline, show unexpected peaks, or lack expected features [41] [42].

Troubleshooting Step	Action & Verification
Allow Lamp Warm-Up	For tungsten halogen or arc lamps, allow 20 minutes after turning on the instrument for the light output to stabilize before taking measurements [5].
Optimize Concentration/Path Length	If absorbance is too high (>1.0), dilute the sample or use a shorter path cuvette. If the signal is too low, increase concentration or path length [5] [43].
Check for Contamination	Unexpected peaks can indicate sample or cuvette contamination. Re-prepare the sample using clean glassware and high-purity solvents and cuvettes [5].
Reduce Stray Light & Noise	Ensure the instrument compartment is closed and the light path is unobstructed. Use slower scan speeds or longer integration times to improve the signal-to-noise ratio [42] [13].
Control Environmental Factors	Maintain a stable temperature during measurement, as temperature can affect reaction rates, solubility, and sample concentration [5] [43].
Verify Sample Homogeneity	Ensure the sample is fully dissolved and free of particles that could cause light scattering, which distorts the baseline, particularly at shorter wavelengths [42].

Frequently Asked Questions (FAQs)

Q1: How do I select the optimal wavelength for quantifying my sample?

The optimal wavelength for quantification is typically the wavelength of maximum absorbance (λmax) for your analyte [42]. To find it:

• Perform a full spectrum scan (e.g., from 200 nm to 800 nm) for your sample.
• Identify the peak where absorbance is highest.
• Use this specific wavelength for all quantitative measurements in your method. Using λmax provides the greatest sensitivity and minimizes the impact of minor instrumental wavelength drifts on accuracy [43].

Q2: What is the ideal absorbance range for the most accurate results, and how do I achieve it?

The Beer-Lambert Law holds most accurately in an absorbance range of 0.1 to 1.0 [42]. Outside this range, especially above 1.5, detectors can become non-linear, and stray light effects increase, reducing accuracy [43] [42]. To achieve this:

• For Absorbance > 1.0: Dilute your sample or use a cuvette with a shorter path length (e.g., 1 mm instead of 10 mm) [5] [43].
• For Absorbance < 0.1: Increase the sample concentration or use a cuvette with a longer path length [43].

Q3: My sample is highly scattering (e.g., nanoparticles). How do I choose a path length and solvent?

For light-scattering samples, a shorter path length (e.g., 1 mm or 2 mm) is highly recommended. This reduces the total distance light must travel through the turbid sample, minimizing the amount of light lost to scattering before it reaches the detector and providing a more reliable signal [5]. The solvent should be chosen to minimize chemical interaction with the particles and to match the refractive index as closely as possible to that of the particles to further reduce scattering artifacts.

Q4: How does solvent choice directly impact my UV-Vis spectrum?

Solvent choice can significantly impact your spectrum in three key ways [42]:

• Absorbance Cutoff: Every solvent has a wavelength below which it absorbs too much light to be useful. Ensure your analyte's λmax is above the cutoff wavelength of your solvent (e.g., use acetonitrile instead of acetone for measurements below 330 nm).
• Solvatochromism (Spectral Shifts): Solvent polarity can cause shifts in λmax. A bathochromic (red) shift to longer wavelengths often occurs with increasing solvent polarity for π→π* transitions.
• Hydrogen Bonding: Solvents like water or alcohols can form hydrogen bonds with the analyte, altering the energy of electronic transitions and changing the spectrum's shape and λmax.

Experimental Protocol for Parameter Optimization

This protocol provides a systematic methodology for establishing robust UV-Vis parameters, directly supporting calibration resilience.

Title: Systematic Workflow for UV-Vis Method Parameter Optimization and Calibration

Objective: To determine the optimal wavelength (λmax), validate the linear dynamic range of the Beer-Lambert Law for the analyte, and establish the impact of solvent and path length for reliable quantification.

Materials:

• UV-Vis Spectrophotometer (e.g., Techcomp UV2500, PERSEE TU700) [44] [43]
• Quartz cuvettes (e.g., 10 mm, 2 mm path lengths) [5]
• Analytical balance
• High-purity analyte and solvent
• Volumetric flasks and pipettes

Procedure:

• λmax Determination:
  • Prepare a stock solution of the analyte at a mid-range concentration.
  • Fill a quartz cuvette with the solution.
  • Scan the absorbance from a lower wavelength (e.g., 200 nm) to a higher one (e.g., 800 nm) against a solvent blank.
  • Identify the wavelength of the highest peak; this is the λmax for the method [42].

• Linearity and Dynamic Range Validation:

  • Prepare a series of 5-7 standard solutions of known concentration, spanning from low to high.
  • Measure the absorbance of each standard at the determined λmax.
  • Plot absorbance vs. concentration and perform linear regression.
  • The validated range is where the curve maintains linearity (R² > 0.995). Concentrations yielding absorbance outside 0.1-1.0 should be diluted or measured with an adjusted path length [43] [42].

• Solvent Compatibility Check:

  • Perform a baseline correction with the chosen solvent in the cuvette.
  • Scan the pure solvent alone. The absorbance should be flat and near zero across your wavelength range of interest. Significant absorption indicates an unsuitable solvent [42].

• Path Length Verification for High Concentration:

  • For samples yielding A > 1.0, repeat the measurement with a shorter path length cuvette (e.g., 2 mm).
  • Apply the Beer-Lambert law (A ∝ path length) to correlate the readings and confirm the concentration falls within the linear range [5] [43].

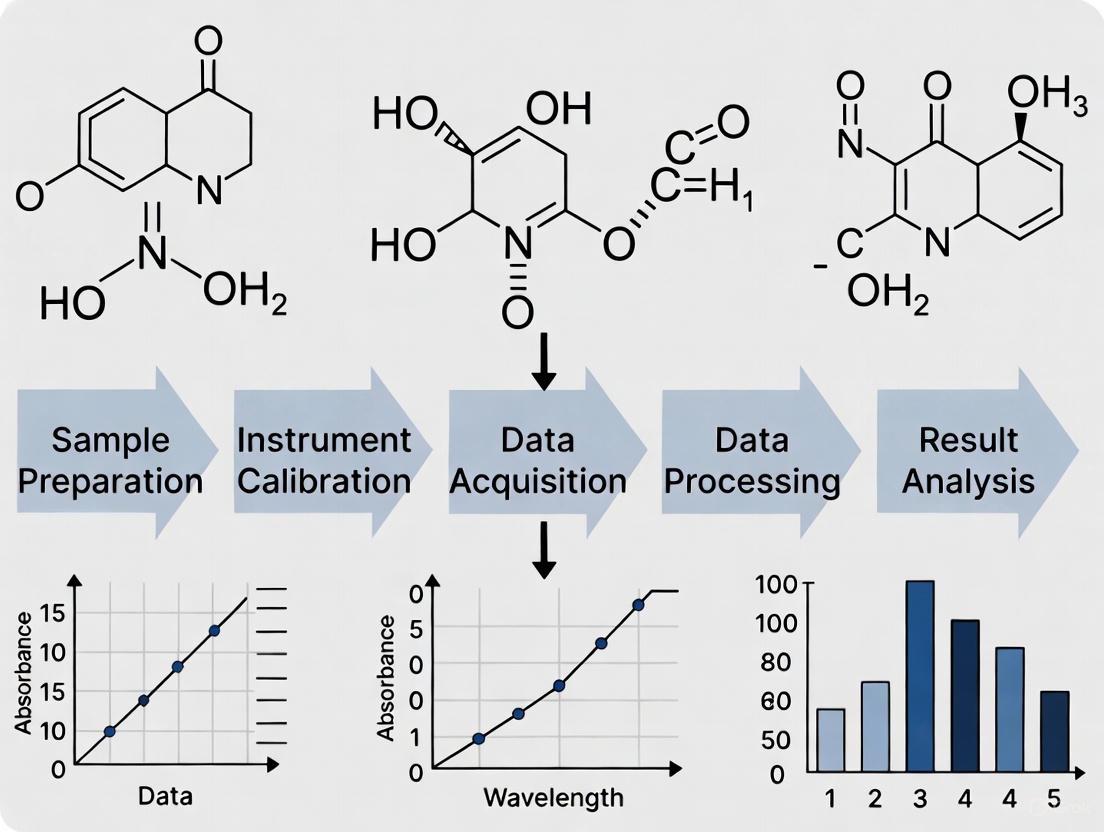

Diagram 1: UV-Vis method optimization workflow for robust calibration.

Research Reagent Solutions

The following table details essential materials for reliable UV-Vis spectroscopy experiments.

Item	Function & Rationale
Quartz Cuvettes	Ideal for UV-Vis range (including UV) due to high transmission. Reusable and chemically resistant, but require careful cleaning. Plastic cuvettes are for visible light only and can be dissolved by certain solvents [5] [42].
Certified Reference Standards	Substances with known absorbance characteristics (e.g., holmium oxide for wavelength accuracy, potassium dichromate for absorbance verification). Critical for instrument performance qualification and calibration validation [45] [13].
High-Purity Solvents	"Spectrophotometric grade" solvents with low UV absorbance cutoffs are essential to avoid background interference that obscures the sample's signal [42].
Halogen Calibration Lamp	A highly stabilized light source with known spectral output, used for advanced radiometric calibration of the spectrometer to ensure long-term measurement integrity, especially in demanding environments [45].
Stabilized Power Supply	Provides highly consistent current to calibration lamps, preventing fluctuations in light intensity that could introduce errors during instrument calibration procedures [45].

Leveraging Microvolume Techniques for Precious or Limited-Quantity Samples

Troubleshooting Guides

Guide 1: Resolving Calibration and Baseline Issues

Problem: The instrument fails calibration or shows high baseline noise. This is often caused by insufficient light reaching the detector, which is a critical calibration challenge in UV-Vis research [46].

• Check the Light Source: A weak, aged, or burned-out lamp is a common culprit [10] [47]. Switch the instrument to an uncalibrated mode to observe the full spectrum; a flat graph in certain regions indicates a faulty light source that needs replacement [46].
• Perform an Air Blank Test: Measure the absorbance of air (with no cuvette in the instrument). For a well-functioning instrument, the absolute absorbance (|Abs|) should be less than 0.005 across the entire UV-Vis range. This test effectively measures source/detector noise and the instrument's baseline correction procedure [13].
• Verify the Light Path is Clear: Ensure there is no debris blocking the internal light path [10]. If using a cuvette, confirm it is clean, unscratched, aligned correctly, and filled with enough sample [46] [48].
• Use Compatible Solvents and Cuvettes: For UV measurements, standard plastic cuvettes block UV light. Use quartz or UV-compatible plastic cuvettes. Similarly, ensure your solvent does not absorb strongly in the UV range [46].

Problem: The instrument displays a "stray light" or "energy" error during self-test. This directly impacts calibration and measurement accuracy.

• Inspect the Deuterium Lamp: "NG9" or "D2-failure" messages often indicate an aging deuterium lamp with insufficient energy, particularly in the UV region. The lamp may need replacement [10].
• Check for Moisture or Oxidation: Instruments unused for long periods can have optical filters damaged by moisture (deliquescence) or internal copper contacts that have oxidized, leading to wavelength check failures [10].
• Reseat Internal Components: If the instrument is silent upon startup or shows "offline," the issue may be a poor connection with an internal card. Open the main unit, remove the card, and firmly re-insert it [10].

Guide 2: Addressing Data Inaccuracy and Sample Measurement Problems

Problem: Absorbance readings are unstable, fluctuating, or consistently too high (e.g., over 2.0).

• Optimize Sample Concentration: For reliable results, absorbance values should be between 0.1 and 1.0 absorbance units [48]. Overly concentrated samples cause detector saturation and noisy, non-linear data. Dilute your samples and re-measure [46].
• Always Use a Proper Blank: Zero the instrument using a blank consisting of the solvent or buffer used in your sample. This eliminates the absorbance contribution from the solvent and cuvette, ensuring the measurement is specific to your analyte [48].
• Ensure Environmental Stability: Voltage instability and high humidity can significantly affect results and cause fluctuations. It is recommended to use a voltage stabilizer and control lab humidity [10].
• Confirm Wavelength Accuracy: Using an incorrect wavelength can lead to poor sensitivity and inaccurate results. Always use the known absorption peak for your analyte, which can be determined by performing a wavelength scan [48].

Problem: Micro-volume measurements for nucleic acids or proteins are inconsistent.

• Verify Sample Retention: In micro-volume systems, ensure the sample column is properly formed and stable between the measurement surfaces. An unstable droplet will give erratic readings.
• Clean Measurement Surfaces: Wipe the upper and lower measurement surfaces with a lint-free lab tissue and isopropyl alcohol between samples to prevent cross-contamination.
• Account for Path Length: The fixed path length in a micro-volume system is very short (e.g., 0.5 mm or 1.0 mm). Ensure your analysis software or calculations are set to the correct path length, as it drastically affects concentration calculations.

Frequently Asked Questions (FAQs)

Q1: My micro-volume spectrophotometer is calibrated, but my nucleic acid concentration seems inaccurate. What should I check? First, verify the sample itself. Contaminants like residual salts or phenol can absorb at 230 nm or 280 nm and skew the A260/A260 ratio. A pure DNA sample should have an A260/A280 ratio of ~1.8 and an A260/A230 ratio of ~2.0-2.2. Significant deviations suggest contamination. Also, ensure you have selected the correct assay type (e.g., "dsDNA") in the instrument software.

Q2: How can I tell if my instrument's deuterium lamp needs replacing? Several signs indicate a failing deuterium lamp [10]:

• The instrument fails self-tests for stray light or UV energy with error codes like "NG9" or "Error Code = 24".
• You observe unusually high noise or instability at low UV wavelengths (e.g., 220 nm) while higher wavelengths are fine [10].
• The lamp has exceeded its typical operational lifetime (usually 1000 hours).

Q3: Why can I measure my samples in the visible range but not in the UV range? This is almost certainly a light source issue. The tungsten lamp provides light for the visible range, while the deuterium lamp is required for the UV range. If the deuterium lamp has failed or its power supply is faulty, UV measurements will be impossible, while visible light measurements remain unaffected [10].

Q4: What are the most critical factors when preparing a sample for micro-volume analysis?

• Purity: The sample must be free of bubbles or particulates that can scatter light.
• Volume: Use the recommended volume (typically 1-2 µL) to ensure a stable liquid column.
• Homogeneity: Mix the sample thoroughly to ensure an even distribution of the analyte.
• Cleanliness: Meticulously clean the measurement surfaces between samples to prevent carryover.

Experimental Protocols for Key Applications

Protocol 1: Nucleic Acid Quantification and Purity Assessment (Micro-volume)

This protocol is designed for precious nucleic acid samples, requiring only 1-2 µL.

1. Principle: Nucleic acids (DNA and RNA) absorb ultraviolet light at a maximum of 260 nm. The absorbance value at 260 nm (A260) is used to calculate concentration, while the ratios of A260/A280 and A260/A230 assess purity against common contaminants [49].

2. Materials:

• Micro-volume UV-Vis spectrophotometer.
• Lint-free laboratory wipes.
• Deionized, nuclease-free water.
• Purified nucleic acid sample (e.g., DNA, RNA).

3. Procedure:

• Step 1: Power on the spectrophotometer and allow it to initialize. Select the "Nucleic Acid" application.
• Step 2: Clean the measurement surfaces with a lint-free wipe moistened with deionized water.
• Step 3: Blank the instrument using 1-2 µL of your diluent (typically deionized water).
• Step 4: Gently pipette 1-2 µL of your nucleic acid sample onto the lower measurement surface. Execute the measurement command to lower the upper arm.
• Step 5: Record the concentration (in ng/µL) and the absorbance ratios (A260/A280 and A260/A230). The software automatically performs these calculations using established formulas and the fixed path-length.
• Step 6: Clean the surfaces thoroughly before analyzing the next sample.

Protocol 2: Bacterial Culture Growth Monitoring (OD600) using Cuvettes

This protocol uses a standard 1 cm cuvette for larger sample volumes to monitor bacterial density.

1. Principle: The turbidity of a bacterial suspension scatters light, and the Optical Density at 600 nm (OD600) provides a measure of bacterial cell density [49].

2. Materials:

• UV-Vis spectrophotometer with cuvette holder.
• Sterile, disposable or glass cuvettes (1 cm path length).
• Sterile culture medium (e.g., LB broth) for blanking.
• Bacterial culture sample.

3. Procedure:

• Step 1: Turn on the spectrophotometer and let the lamp warm up for at least 15 minutes.
• Step 2: Set the wavelength to 600 nm.
• Step 3: Fill a cuvette with sterile culture medium and use it to zero the instrument (0.00 Abs).
• Step 4: Replace the blank cuvette with one containing your bacterial culture sample. Ensure the cuvette's clear sides are aligned with the light path.
• Step 5: Measure and record the OD600 value. For accuracy, ensure the measured absorbance is below 0.8. If it is higher, dilute the culture with fresh medium and remeasure, multiplying the result by the dilution factor.

The following table summarizes key volumetric and wavelength requirements for common assays, guiding the selection of the appropriate measurement mode.

Table 1: Sample and Wavelength Specifications for Common UV-Vis Assays

Sample Type	Minimum Sample Volume	Primary Wavelength(s)	Recommended Measurement Mode
Nucleic Acids	1 - 2 µL [49]	260 nm [49]	Micro-volume
Proteins	1 - 2 µL [49]	280 nm [49]	Micro-volume
Bacterial Solution (OD600)	1 mL [49]	600 nm [49]	Cuvette
Chemical Samples (General)	1 mL (cuvette) / 1-2 µL (micro) [49]	Varies; full spectrum scan if unknown [49]	Micro-volume or Cuvette

Workflow Diagram for Micro-volume Analysis

The diagram below outlines the logical workflow and decision process for performing micro-volume analysis, from sample preparation to data interpretation, highlighting key troubleshooting checkpoints.

The Scientist's Toolkit: Research Reagent Solutions

This table details essential materials and their functions for successful micro-volume spectrophotometry.

Table 2: Essential Reagents and Materials for Micro-volume Analysis

Item	Function	Key Considerations
Micro-volume Spectrophotometer	Quantifies analyte concentration and assesses purity by measuring light absorbance.	Select a model offering both micro-volume and cuvette modes for flexibility [49].
Lint-free Wipes	For cleaning optical measurement surfaces to prevent contamination and light scatter.	Essential for maintaining data accuracy between samples.
Compatible Solvent (e.g., Water, TE Buffer)	Serves as the sample diluent and the blank solution.	Must be free of contaminants that absorb in the UV range [48].
Quartz or UV-compatible Cuvettes	Holds sample for measurements when larger volumes are available or required.	Standard plastic cuvettes block UV light; use quartz for UV measurements [46].
Certified Reference Materials (e.g., KDNA)	Used for periodic verification of instrument calibration and accuracy [48].

Systematic Troubleshooting: Diagnosing and Resolving Calibration Failures

Diagnostic Flowcharts for Common UV-Vis Instrument Errors

Troubleshooting Flowchart: Resolving Energy and Wavelength Errors

This flowchart provides a systematic approach to diagnosing common UV-Vis spectrophotometer errors related to light source energy and wavelength calibration [10].

Troubleshooting Flowchart: Display and System Interface Issues

This flowchart addresses problems with spectrophotometer displays, garbled screens, and communication failures between instruments and computers [10].

Frequently Asked Questions (FAQs) and Solutions

Light Source and Energy Issues

Q: My spectrophotometer displays "ENERGY ERROR" or "L0" during initialization. What should I check?

A: This indicates insufficient light energy reaching the detector [10]. Follow this diagnostic sequence:

• Identify the spectral range: If the error occurs in UV measurements, suspect deuterium lamp issues. For visible range errors, check the tungsten lamp [10].
• Visual inspection: Check if the correct lamp is lit. Deuterium lamps should emit a characteristic purple glow, tungsten lamps a bright white light [10].
• Lamp age: Deuterium lamps typically last 1000 hours. Replace if nearing end of life [10].
• Power supply: For tungsten lamps that won't light even when replaced, check for burnt power components or broken wiring [10].

Q: The instrument shows "D2-failure" but the deuterium lamp appears to be lit. What could be wrong?

A: This suggests the lamp may be igniting but has insufficient energy output [10]. Possible causes:

• Aging lamp: The lamp may produce visible light but insufficient UV energy.
• Ignition circuit failure: Check resistors in the ignition control circuit (e.g., a failed 100Ω resistor as documented in UV-260 repairs) [10].
• Position sensor issues: The lamp may not be properly aligned in the optical path.

Q: Why does my spectrophotometer pass self-test but give inaccurate absorbance readings?

A: This indicates photometric accuracy issues [16]:

• Stray light: Particularly problematic at high absorbance values (>1.5 AU) [16].
• Wavelength accuracy: Use holmium oxide filters to verify wavelength calibration [16].
• Bandwidth effects: Wider bandwidths can cause absorbance depression, especially with sharp peaks [16].

Sample Measurement and Calibration Issues

Q: I'm getting unusually high absorbance values with previously accurate standards. What should I investigate?

A: Sudden measurement deviations suggest several possible causes [10]:

• Electrical stability: Install a voltage stabilizer if line voltage fluctuates.
• Environmental factors: High humidity significantly affects readings. Maintain proper laboratory conditions [10].
• Cuvette issues: Check for contamination, scratches, or improper orientation [5].
• Stray light: Verify using appropriate cutoff filters [16].

Q: My blank solution won't zero, with absorbance values fluctuating wildly. Is my instrument damaged?

A: Not necessarily. Before assuming instrument failure [10]:

• Sample compartment check: Ensure no foreign objects or residue from previous samples.
• Cuvette integrity: Check for microscopic cracks or imperfections.
• Solvent compatibility: Verify the blank solvent doesn't absorb at your measurement wavelength [5].
• Allow warm-up: Ensure the instrument light source has stabilized (20+ minutes for halogen/arc lamps) [5].

System and Communication Errors

Q: The spectrophotometer display is garbled or frozen on startup. What component failures cause this?

A: Display issues typically indicate electronic rather than optical problems [10]:

• Memory failure: "BACKUP MEMORY CHECK NG" errors indicate failed RAM chips (commonly 62256 type) [10].
• Poor connections: Reseat internal cards and connectors firmly.
• Program corruption: May require firmware reinstallation by service technician.

Q: The instrument and computer won't communicate, displaying "CAN NOT FIND LAMPW." What does this mean?

A: This error indicates the instrument cannot establish communication with its internal light source control system [10]. Resolution steps:

• Restart the system: Power cycle both instrument and computer.
• Check cables: Ensure all communication cables are securely connected.
• Software verification: Confirm you're using compatible software versions (e.g., LabQuest App v2.8.8 or newer for Vernier systems) [50].
• Internal inspection: If problems persist, internal electronic boards may need reseating or replacement [10].

Research Reagent Solutions for Calibration and Validation

The following reagents and materials are essential for maintaining spectrophotometric accuracy and troubleshooting measurement problems in pharmaceutical research settings.

Reagent/Material	Function in UV-Vis Spectroscopy	Application in Troubleshooting
Holmium Oxide Solution/Filter	Wavelength calibration standard	Verifies wavelength accuracy across UV-Vis range using sharp absorption peaks [16]
Potassium Dichromate Solutions	Photometric accuracy standard	Validates absorbance accuracy at multiple wavelengths (240nm, 350nm, etc.) [16]
Stray Light Filters	Stray light quantification	Identifies stray light issues using cutoff filters (e.g., at 240nm) [16]
Neutral Density Filters	Photometric linearity verification	Checks instrument linearity across absorbance range [16]
Quartz Cuvettes	Sample containment for UV measurements	Ensures proper UV transmission; eliminates glass absorption artifacts [5]
NIST-Traceable Standards	Absolute accuracy validation	Provides certified reference materials for regulatory compliance [16]

Experimental Protocols for Instrument Validation

Protocol: Wavelength Accuracy Verification Using Holmium Oxide

Purpose: To verify the wavelength accuracy of UV-Vis spectrophotometers as part of routine performance qualification [16].

Materials:

• Holmium oxide filter or solution standard
• Quartz cuvette (if using solution)
• Software for peak detection

Methodology:

• Instrument preparation: Allow the spectrophotometer to warm up for at least 20 minutes for stable output [5].
• Baseline correction: Perform baseline correction with appropriate blank.
• Scan acquisition: Scan the holmium standard from 800 nm to 200 nm at 2 nm bandwidth.
• Peak identification: Identify key absorption peaks and compare to certified values:
  • 241.15 nm, 287.15 nm, 361.5 nm, 536.3 nm (typical values)
• Acceptance criteria: Measured peaks should be within ±1 nm of certified values for quality instruments.

Troubleshooting: If peaks are shifted beyond specification:

• Check for instrumental bandwidth effects (wider bandwidths shift apparent maxima) [16].
• Verify proper holmium standard preparation (for solutions).
• Consider prism vs. grating instrument characteristics (prisms have nonlinear dispersion) [16].

Protocol: Stray Light quantification Using Potassium Chloride

Purpose: To determine the stray light characteristics of a spectrophotometer, particularly critical for high-absorbance measurements in pharmaceutical analysis [16].

Materials:

• High-purity potassium chloride (KCl)
• Quartz cuvettes
• Ultrapure water

Methodology:

• Solution preparation: Prepare a 12 g/L KCl solution in ultrapure water.
• Measurement: Measure absorbance at 240 nm using water as blank.
• Calculation: The measured absorbance directly indicates stray light percentage.
• Acceptance criteria: High-quality instruments should have <0.1% stray light at 240 nm.

Troubleshooting: High stray light values indicate:

• Grating degradation or contamination
• Excessive scatter in optical components
• Compromised monochromator integrity
• Need for instrumental maintenance by qualified technician

Quantitative Data from Interlaboratory Studies

The following data illustrates typical performance variations observed in UV-Vis spectrophotometry across different laboratories, highlighting the importance of rigorous calibration and troubleshooting protocols [16].

Test Solution	Concentration (mg/L)	Wavelength (nm)	Absorbance CV%	Transmittance CV%
Acidic Potassium Dichromate	20	380	11.1	2.79
Alkaline Potassium Chromate	40	300	15.1	5.25
Alkaline Potassium Chromate	40	340	9.2	6.74
Acidic Potassium Dichromate	60	328	5.0	4.97
Acidic Potassium Dichromate	100	366	5.8	11.42
Acidic Potassium Dichromate	100	240	2.8	8.14

Data adapted from College of American Pathologists comparative study [16]

Diagnostic Tables: Recognizing Light Source Failure Symptoms

The tables below summarize common error indicators and performance issues related to deuterium and tungsten lamp failures, aiding in preliminary diagnosis.

Table 1: Troubleshooting Deuterium Lamp Failures

Symptom / Error Code	Possible Cause	Diagnostic Steps	Reference Solution
"NG9" / Insufficient Deuterium Lamp Energy [10]	Aged deuterium lamp [10]	Check lamp hours; inspect for visible damage or inability to ignite [10] [51]	Replace deuterium lamp [10]
"D2-failure" / "Energy-low" [10]	Failing lamp or faulty power supply [10]	Confirm clear light path; if clear, fault is with lamp or its power supply [10]	Replace lamp; if persists, check power supply and control circuits [10]
"CAN NOT FIND LAMPW" [10]	Lamp not igniting or faulty power supply [10]	Check if lamp is physically on; inspect for characteristic wavelength [10]	Replace deuterium lamp; inspect lamp power supply [10]
"L0" at 220 nm (Other wavelengths fine) [10]	Deuterium lamp nearing end of life [10]	Perform wavelength scan to identify energy drop in UV region [10]	Replace deuterium lamp [10]
High baseline noise & random signal spikes [51]	Worn-out deuterium lamp [51]	Check integrated lamp energy test; review logged operating hours [51]	Replace deuterium lamp [51]
No voltage to lamp; lamp confirmed working [52]	Faulty power supply board or cabling [52]	Test voltage at lamp contacts; check connecting cables [52]	Service power supply board; replace faulty cables [52]

Table 2: Troubleshooting Tungsten Lamp Failures

Symptom / Error Code	Possible Cause	Diagnostic Steps	Reference Solution
Tungsten lamp does not light [10]	Burned-out lamp or electrical fault [10]	Visually inspect lamp filament; check for burning smell [10]	Replace tungsten lamp; if persists, check wiring and power supply [10]
"Tungsten lamp energy high" fault [10]	Malfunction in light source switching motor [10]	Listen for unusual motor sounds; attempt manual source switching [10]	Service or replace switching motor or its position sensor [10]
Absorbance readings ~double expected values [10]	Not typically a lamp fault	Verify sample preparation and concentration calculations [10]	Correct solution preparation error; re-measure [10]
Fluctuating T% reading (~8%) [10]	Unstable light source (often deuterium lamp) [10]	Observe stability in both UV and Vis regions to isolate source [10]	Replace unstable lamp (deuterium or tungsten) [10]

Experimental Protocols for Lamp Diagnostics and Calibration

Deuterium Lamp Energy Test Protocol

Purpose: To quantitatively assess the output performance of the deuterium lamp, a critical pre-calibration step. Materials: Holmium oxide filter, NIST-traceable wavelength standards [8] [16]. Method:

• Warm-Up: Ensure the spectrophotometer has been powered on for at least 20 minutes to stabilize [5].
• Baseline Correction: Perform a baseline correction with an empty sample compartment or using a matched blank cuvette [3].
• Spectral Scan: Execute a scan across the deuterium lamp's primary range (e.g., 200-350 nm).
• Energy Measurement: Navigate to the instrument's internal system diagnostics to check the relative energy output at key wavelengths (e.g., 220 nm, 656 nm) [51].
• Performance Criteria: Compare the current energy reading to the value recorded when the lamp was new. A decrease to below 30% of the initial value indicates the lamp requires replacement [51].

Stray Light Verification Protocol

Purpose: To confirm that lamp degradation is not causing excessive stray light, which compromises calibration accuracy. Materials: High-purity water or certified stray light filters (e.g., potassium chloride or sodium iodide solutions) [8] [16]. Method:

• Solution Preparation: Prepare a 1.2% w/v potassium chloride (KCl) solution in high-purity water [16].
• Measurement: Fill a quartz cuvette with the KCl solution and measure the absorbance at 240 nm, using water as a blank.
• Acceptance Criteria: The measured absorbance should be greater than 2.0 AU. A significantly lower reading indicates problematic levels of stray light, which can be caused by a failing lamp, dirty optics, or a monochromator issue [16].

Wavelength Accuracy Calibration Protocol

Purpose: To verify the spectrophotometer's wavelength scale is accurate, ensuring spectral data integrity. Materials: Holmium oxide glass or solution filter [8] [16]. Method:

• Standard Scan: Place the holmium oxide filter in the light path and perform a slow scan over its characteristic absorption peaks (e.g., 241 nm, 279 nm, 287 nm, 360 nm, 453 nm) [16].
• Peak Identification: Record the wavelength at which each peak maximum is observed.
• Tolerance Check: Compare the measured peak positions to the certified values of the standard. The deviation should typically be within ±0.5 nm for a properly calibrated instrument [8] [16].

Visual Guide to Lamp Failure Troubleshooting

The workflow below outlines a systematic approach for diagnosing and resolving common lamp issues.

The Scientist's Toolkit: Essential Reagents & Materials

Table 3: Key Reagents and Materials for Diagnostics and Calibration

Item	Function / Purpose	Application Example
Holmium Oxide Filter	Wavelength accuracy standard with sharp, known absorption peaks [8] [16]	Calibrating and verifying the wavelength scale of the spectrophotometer [16]
Potassium Chloride	Stray light verification in the UV region [16]	Preparing 1.2% solution to check for stray light at 240 nm [16]
Certified Neutral Density Filters	Photometric linearity checks [8]	Verifying the instrument's absorbance accuracy across its range [8]
Matched Quartz Cuvettes	Holding liquid samples for measurement; ensuring pathlength accuracy [5] [3]	Used in all sample and blank measurements to avoid pathlength errors [3]
NIST-Traceable Standards	Reference materials with certified values for instrument validation [8]	Providing the highest level of confidence during calibration protocols [8]

Frequently Asked Questions (FAQs)

Q1: My deuterium lamp passes the ignition sequence but I get a low energy error. Can I still use the instrument? If you are only performing measurements in the visible light range, you may use the instrument temporarily. However, for any UV work, the lamp must be replaced immediately, as low energy indicates advanced aging and will lead to inaccurate absorbance readings [10].

Q2: What is the typical lifetime of a deuterium lamp, and does switching it off extend its life? Most deuterium lamps are rated for approximately 2000 hours of operation, though actual lifespan can vary. Contrary to intuition, frequently switching the lamp on and off does not extend its life; each cooling and reheating cycle can stress the lamp and reduce its total lifetime. It is often recommended to leave the lamp on during the workday if it will be used multiple times [51].

Q3: I replaced the tungsten lamp with a new one, but it still won't turn on, and I noticed a burning smell earlier. What should I do? A burning smell indicates an electrical fault, such as a burnt-out component in the power supply section or broken power wires. Do not attempt further repairs. This issue requires inspection by a professional service technician to prevent damage to the new lamp or other instrument components [10].

Q4: How can I distinguish between a true lamp failure and a problem with my sample? First, run a baseline correction with a clean, matched blank. If the baseline is unstable or shows abnormal features, the issue is likely instrumental (lamp or optics). If the baseline is stable, test a known standard that has previously given good results. If the standard reads incorrectly, the lamp is suspect. If the standard reads correctly, the problem likely lies with your sample preparation or concentration [10] [5].

Q5: How often should I perform a full wavelength and stray light calibration on my instrument? For research-grade work, a full calibration check is recommended weekly or before starting a critical series of measurements. This frequency should be increased with high instrument usage or when operating in harsh environmental conditions. Always adhere to the specific guidelines of your quality system (e.g., USP 857) which may dictate the calibration schedule [8].

Troubleshooting Guides

FAQ: How does sample turbidity affect my UV-Vis measurements and how can I resolve it?

Answer: Turbidity causes light scattering, which is measured as apparent absorbance (often labeled as OD or optical density) rather than true absorption. This leads to inaccurately high readings because the detector measures light loss from both absorption and scattering [53].

To resolve turbidity issues:

• Filter your samples: Use a syringe filter (0.45 µm or 0.2 µm) to remove dust or particulate matter before measurement [53].
• Centrifuge samples: For samples that cannot be filtered, centrifugation can help remove suspended particles.
• Use clarified solvents: Ensure all solvents and solutions are particle-free.
• Note: For intentional turbidity studies (e.g., bacterial growth), report results as "scattering at X nm" rather than absorbance [53].

FAQ: Why do bubbles form in my cuvette and how do they impact results?

Answer: Bubbles act as microscopic lenses that scatter and refract light, creating unpredictable fluctuations in absorbance readings and reducing measurement reproducibility [5].

To prevent and eliminate bubbles:

• Proper pouring technique: Tilt the cuvette and pour solutions along the side to minimize agitation.
• Degassing: Let degassed solvents reach room temperature before use.
• Visual inspection: Always check the cuvette from all angles before insertion.
• Tapping method: Gently tap the cuvette to dislodge bubbles stuck on the walls.

FAQ: How do I know if my sample concentration is causing errors?

Answer: Concentration errors manifest as absorbance values outside the ideal quantitative range (0.1-1.0 AU), causing non-linear behavior that violates Beer-Lambert law assumptions [54] [15].

Table: Identifying and Correcting Concentration-Related Errors

Observed Symptom	Probable Cause	Corrective Action
Absorbance > 1.0 AU [54]	Sample too concentrated	Dilute sample to fall within linear range
Absorbance < 0.1 AU	Sample too dilute	Concentrate sample or use cuvette with longer path length
Non-linear standard curve	Chemical interactions at high concentration	Use concentrations yielding A < 1.0 for quantitative work [53]
Reading displays "over" or "3.0"	Extreme concentration beyond detector limit	Significant dilution required [10]

General Sample Preparation Workflow

The following diagram outlines a logical workflow to systematically address these common sample-related issues:

Essential Research Reagent Solutions

Table: Key Materials for Reliable UV-Vis Sample Preparation

Material/Reagent	Function	Critical Considerations
Syringe Filters (0.2 µm, 0.45 µm)	Removes particulates causing turbidity	Use material compatible with your solvent (e.g., Nylon for aqueous, PTFE for organic) [53]
Quartz Cuvettes	Holds sample for measurement in UV range	Preferred over plastic or glass for UV work; ensure all sides are clean [15]
High-Purity Solvents	Dissolves analyte for measurement	Must have low absorbance in your wavelength range; use in blank/reference [54]
Reference Standards	Validates instrument performance & method	Certified reference materials (CRMs) for critical quantitative work
Cuvette Cleaning Solution	Removes residual contaminants	Use appropriate solvent sequence (e.g., water → acetone) for previous sample

Detailed Experimental Protocols

Protocol: Sample Filtration for Turbidity Reduction

Principle: Removing submicron particles that cause light scattering through membrane filtration.

Materials:

• Syringe (1-10 mL, solvent-compatible)
• Syringe filter (0.2 µm or 0.45 µm pore size, choose material for solvent compatibility)
• Sample solution
• Clean collection vial

Procedure:

• Draw the sample solution into the syringe.
• Attach the syringe filter securely to the syringe.
• Gently press the plunger to pass the first 0.5 mL through the filter. Discard this volume as it may contain contaminants from the filter membrane.
• Continue to push the solution through the filter into a clean collection vial.
• Proceed with measurement using the filtered solution.

Validation: The filtered sample should appear visually clear. A preliminary scan should show a smooth absorption spectrum without sharp, narrow spikes that might indicate residual particles.

Protocol: Absorbance Range Verification and Sample Dilution

Principle: Ensuring measurements fall within the linear range of the spectrophotometer (0.1-1.0 AU) for accurate quantitative analysis [54] [15].

Materials:

• Stock sample solution
• Appropriate solvent (for dilution)
• Micropipettes and tips
• Cuvettes

Procedure:

• Measure the absorbance of the stock solution at the analytical wavelength.
• If absorbance > 1.0 AU, perform a serial dilution:
  • Prepare an initial 1:10 dilution (e.g., 100 µL sample + 900 µL solvent).
  • Mix thoroughly and measure absorbance.
  • If absorbance remains >1.0, continue with further dilutions until the value falls between 0.1 and 1.0 AU.
• If absorbance < 0.1 AU, either:
  • Concentrate the sample, or
  • Use a cuvette with a longer path length to increase the effective absorbance.
• Record the final dilution factor for concentration calculations.

Note: For qualitative studies, absorbance values greater than 1.0 can be acceptable if analyzing trends, but quantitative work requires A < 1.0 [53].

Preventive Maintenance Schedules for Enhanced Instrument Longevity

Within the broader context of overcoming calibration challenges in UV-Vis spectroscopy research, a robust preventive maintenance (PM) schedule is not merely an operational routine but a fundamental prerequisite for data integrity. For researchers and drug development professionals, consistent and reliable results are paramount. Instrument drift, often a consequence of neglected maintenance, directly manifests as a calibration challenge, compromising the validity of experimental data. This guide details systematic maintenance and troubleshooting protocols to enhance instrument longevity and ensure measurement accuracy.

Scheduled Preventive Maintenance

A proactive maintenance schedule is crucial for minimizing unexpected downtime and ensuring the instrument operates within specified performance parameters. The following table summarizes the key activities and their recommended frequency.

Table 1: Preventive Maintenance Schedule for UV-Vis Spectrophotometers

Maintenance Activity	Frequency	Key Details & Purpose
General Inspection & Cleaning	Weekly / Before critical use	Inspect for dust, spills, and sample residue. Clean exterior and sample compartment with lint-free wipes [55].
Lamp Replacement	~2000 hours of operation / When energy errors occur	Deuterium (D2) and Tungsten-Halogen (WI) lamps degrade over time, even when unused, leading to low energy errors and inaccurate readings [55] [10].
Optical Component Check	Quarterly / As needed	Inspect and gently clean source mirrors with air blow to remove dust; oxidation or contamination reduces light throughput and signal [55].
Cuvette Inspection	Before each use	Check for scratches, cracks, or contamination on quartz cuvettes, as these can significantly impact transmittance and cause reading errors [55].
Full Performance Validation	Annually / Per compliance needs	Comprehensive check of wavelength accuracy, absorbance linearity, and stray light by qualified technicians to meet GMP or other regulatory standards [55].

Experimental Protocol: Monthly Lamp Energy Assessment

Routinely monitoring lamp energy is a critical experiment to preemptively identify lamp failure before it affects research data.

Methodology:

• Instrument Setup: Turn on the spectrophotometer and allow it to warm up for the manufacturer-specified time (typically 15-30 minutes).
• Baseline Correction: Perform a baseline correction with an empty compartment or a matched pair of blank cuvettes.
• Energy Scan: Set the instrument to scan in %T (Percent Transmittance) mode over your commonly used wavelength range (e.g., 200-800 nm). With no sample in the beam path, initiate a scan.
• Data Analysis: Examine the resulting energy spectrum. A healthy lamp will produce a smooth, high-energy curve. Signs of degradation include:
  • Low Energy: The signal at 100%T is consistently low, which may trigger error messages like "ENERGY ERROR" or "E3093 dark signal too large" [10].
  • Noisy Signal: Excessive noise or fluctuations in the baseline, particularly in the UV region for the deuterium lamp [56].
• Action: If the energy is low or noisy, first ensure the optical path is clear and the compartment is clean. If problems persist, lamp replacement is likely required.

Troubleshooting Guides and FAQs

This section addresses common issues encountered during UV-Vis experiments, linking them directly to potential maintenance failures and calibration challenges.

Table 2: Frequently Asked Questions (FAQs) and Troubleshooting Guide

Question / Symptom	Possible Cause	Solution
The instrument fails self-test, showing "ENERGY ERROR," "NG9," or "D2-failure."	1. Aging or failed deuterium lamp [10].2. Faulty lamp power supply or ignition circuit [10].3. Blocked light path (e.g., a forgotten cuvette) [10].	1. Replace the deuterium lamp [55].2. Check and reseat internal connections; contact a technician for power supply issues [10].3. Ensure the sample compartment is empty and clean.
Absorbance readings are unstable, fluctuating, or noisy.	1. Contaminated or scratched cuvettes [55].2. Degrading lamp (flickering) [10].3. Unstable electrical supply or high humidity [10].	1. Use new, clean quartz cuvettes [55].2. Replace the suspect lamp [10].3. Use a voltage stabilizer and control lab humidity [10].
The instrument won't calibrate (zero absorbance) with a blank solution.	1. Blank solution is contaminated.2. Stray light at low wavelengths (e.g., 220 nm) due to a failing D2 lamp [10].3. General instrument fault.	1. Prepare a fresh blank solution.2. If issue is specific to low UV wavelengths, the deuterium lamp is likely failing [10].3. Perform a full system check and contact support.
Absorbance values are consistently too high (or low) compared to expected.	1. Error in sample or standard preparation [10].2. Incorrect pathlength cuvette.3. Wavelength calibration drift.	1. Verify solution concentrations and dilutions [10].2. Use the correct cuvette pathlength (e.g., 1 cm).3. Check wavelength accuracy using a holmium oxide filter.
The tungsten lamp does not turn on.	1. Burned-out lamp [10].2. Blown fuse or burnt power supply component [10].	1. Replace the tungsten-halogen lamp [55].2. Inspect for visible damage and contact a technician for repairs [10].

Calibration Methodology for Overcoming Challenges

Regular calibration is the most direct action to overcome the fundamental challenge of measurement drift in spectroscopic research.

Experimental Protocol: Wavelength and Absorbance Calibration

Methodology:

• Instrument Preparation: Ensure the spectrophotometer is clean, on a stable table free from vibrations, and has been warmed up for the recommended time [55] [11].
• Blank Measurement: Use a suitable blank solvent (e.g., the buffer used for your samples) in a pristine quartz cuvette. This corrects for any background absorbance from the solvent or cuvette [15].
• Wavelength Calibration:
  • Use a reference standard with sharp, well-defined absorption peaks, such as a holmium oxide filter or solution.
  • Scan the standard and compare the measured peak wavelengths to the certified values. Modern instruments may perform this internally, but manual verification is good practice.
• Absorbance Calibration:
  • Select a reference standard solution with a known and stable absorbance value at a specific wavelength (e.g., potassium dichromate) [11].
  • Introduce the standard into the instrument and set the instrument to read the absorbance at the required wavelength.
  • Adjust the instrument's reading to match the known absorbance value of the standard, effectively calibrating the detector's response [11].
• Verification: Calibrate at multiple wavelengths across your spectral range of interest to ensure broad accuracy [11].

Essential Research Reagent Solutions

The quality of consumables directly impacts the success of an experiment and the reliability of calibration.

Table 3: Key Research Reagents and Materials for UV-Vis Spectroscopy

Item	Function	Critical Consideration
Deuterium (D₂) Lamp	Provides a stable, continuous source of UV light (typically ~190-400 nm) [15] [55].	Degrades over time (~2000 hours); replacement is a key PM activity to avoid low-energy errors [55].
Tungsten-Halogen (WI) Lamp	Provides a stable, continuous source of visible light (typically ~320-1100 nm) [15] [55].	Like the D₂ lamp, it has a finite lifespan and must be replaced periodically [55].
Quartz Cuvettes	Holds liquid samples for analysis. Quartz is transparent to UV and visible light [15].	Must be kept clean and unscratched; any damage impacts transmittance and causes reading errors [55].
Certified Reference Standards	Solutions or filters with known absorbance values used for instrument calibration [11].	Essential for verifying wavelength accuracy and photometric scale (absorbance) to ensure data integrity [11].
Holmium Oxide Filter	A solid-state reference material with sharp absorption peaks at known wavelengths.	Used for precise verification and calibration of the spectrophotometer's wavelength accuracy.

Maintenance and Calibration Workflow

The following diagram illustrates the logical relationship between routine maintenance, performance issues, and the resulting calibration challenges, highlighting the critical role of preventive measures.

Troubleshooting Guides

Why is my UV-Vis instrument not communicating with the computer?

This problem often stems from issues in the physical connection, software drivers, or communication protocols.

• Troubleshooting Steps:

  • Verify Physical Connections: Ensure all cables (USB, Ethernet) are securely connected at both the instrument and computer ends. Try a different cable or USB port.
  • Check Instrument Power: Confirm the spectrometer is powered on and has completed its initialization sequence.
  • Restart Software and Instrument: Close the instrument control software, turn off the spectrometer, and then restart both.
  • Update or Reinstall Drivers: Check the manufacturer's website for the latest device drivers and communication software. Reinstall if necessary.
  • Review Communication Protocols: Ensure the software is configured with the correct communication protocol and that the connection is secure to prevent data interception or manipulation [57].

• Experimental Protocol for Verification:

  • Objective: To systematically verify the instrument-to-computer communication link.
  • Procedure:
    • Use the manufacturer's provided diagnostic tools to run a self-test.
    • Check the computer's "Device Manager" (Windows) or "System Information" (macOS) to see if the instrument is detected without errors.
    • Attempt to collect a baseline or a reference scan with no sample. A successful scan confirms functional communication.

How do I resolve corrupted or missing data files?

Data corruption can occur due to transfer errors, software crashes, or storage media issues.

• Troubleshooting Steps:

  • Check File Integrity: Attempt to open the file on another computer. Check the file size; a size of 0 KB indicates a likely save error.
  • Recovery Options:
    • Look for auto-save or backup files (e.g., .bak, .tmp) within the software's default directory.
    • Use software-specific file repair tools if available.
  • Preventive Measures: Implement data integrity checks, including validation procedures and regular backups to prevent data loss [58]. Ensure a stable connection between data sources and systems for a consistent flow of information [58].

• Experimental Protocol for Data Backup:

  • Objective: To establish a robust data management procedure that ensures data completeness and accuracy [58].
  • Procedure:
    • Standardized Naming: Use a consistent file naming convention (e.g., YYYYMMDD_ExperimentID_SampleID).
    • Secure Storage: Immediately upon saving, copy data files to a secure network drive or cloud storage service that supports versioning.
    • Data Logging: Maintain a physical or digital lab notebook that cross-references experiment dates with corresponding filenames.

What causes unstable baselines or noisy spectra in my data?

Software and connectivity issues can exacerbate instrumental problems, leading to poor data quality that compromises data integrity [3] [8].

• Troubleshooting Steps:

  • Instrument Warm-up: Allow the light source (e.g., tungsten halogen lamp) to warm up for at least 20 minutes before measurement to achieve consistent output [5].
  • Check for Environmental Interference: Minimize vibrations, temperature fluctuations, and electrical interference in the lab environment [3].
  • Software Diagnostics: Use the software's diagnostic features to check for detector errors or source instability.
  • Re-establish Connection: If using a modular or USB spectrometer, temporarily disconnect and reconnect the device to reset the communication link.

• Experimental Protocol for Baseline Validation:

  • Objective: To acquire a stable and flat baseline, confirming system readiness.
  • Procedure:
    • Ensure the sample and reference compartments are empty and the cuvette holders are clean.
    • In the software, initiate a "Baseline Correction" or "Zero" operation using matched, clean cuvettes filled with pure solvent.
    • Collect a baseline scan over your intended wavelength range. A flat line indicates a stable system, while drift or noise suggests an instrumental or environmental issue that must be addressed before sample measurement.

---

Frequently Asked Questions (FAQs)

Q1: How can I ensure the data transferred from my instrument to the computer is accurate and has not been altered? A1: Data integrity is the assurance that data is accurate, complete, and consistent throughout its lifecycle [58]. To ensure this:

• Use Secure Protocols: Employ communication protocols that provide encryption and data integrity checking using checksums or hash functions. This protects data from eavesdropping or modification during transmission [57].
• Implement Access Control: Restrict data access and modification rights to authorized personnel only, reducing the risk of accidental or malicious tampering [57] [58].
• Leverage Software Features: Use modern data management systems that enforce integrity constraints, preventing the creation of duplicate or orphaned data and ensuring relationships between records are maintained [58].

Q2: My software is unable to control the instrument's wavelength motor. What should I do? A2: This is often a calibration or driver conflict issue.

• First, run the manufacturer's wavelength calibration procedure using a certified standard like Holmium Oxide [8].
• If calibration fails, check for software updates or reinstall the device control drivers. Restarting the entire system (computer and instrument) can also resolve temporary communication glitches.

Q3: What are the best practices for maintaining data integrity in regulated environments like pharmaceutical development? A3: In such environments, data integrity is critical for compliance [58]. Key practices include:

• Use of Audit Trails: Implement systems with built-in, secure audit trails that automatically record all data creation, modification, and deletion.
• Access Security: Enforce strong user authentication and role-based access controls [57] [58].
• Data Validation: Use validation tools to automatically identify discrepancies or anomalies in the data [58].
• Regular Backups: Maintain a robust schedule of secure data backups to protect against data loss [58].

Q4: The network connection to my centralized data server is slow, affecting data analysis. How can I improve it? A4:

• Diagnose Network Health: Use network diagnostic tools to check for packet loss or bandwidth bottlenecks.
• Prioritize Traffic: If possible, configure your lab network to give priority to data transfer traffic.
• Off-Peak Transfer: Schedule large data uploads or processing for times of low network usage.
• Local Processing: For preliminary analysis, use the instrument's local computer to reduce dependency on the network.

---

Data Presentation Tables

Table 1: Common Software & Connectivity Errors and Solutions

Error Message / Symptom	Potential Cause	Corrective Action
"Device Not Found"	Loose cable, faulty port, outdated driver	Reseat cables, try a different port, update drivers.
"File Corrupted or Unreadable"	Software crash during save, transfer error	Recover from backup, check for temporary files.
Unstable Baseline / High Noise	Light source not warmed up, environmental interference, poor connection	Warm up lamp for 20+ mins, minimize vibrations, reseat USB connection [5].
Data Values Inconsistent Between Scans	Incorrect access control, lack of data validation	Review user permissions, implement automated data checks [58].

Table 2: Essential Data Integrity Checks

Check Type	Description	Implementation Example
Entity Integrity	Ensures each data entry is unique and identifiable.	Use a primary key (e.g., a unique Sample ID) for every spectrum in a database [58].
Referential Integrity	Ensures consistency between linked data tables.	Prevent deletion of a calibration record if it is linked to sample results [58].
Domain Integrity	Ensures data entries fall within a valid, predefined range.	Set an absorbance value limit of 0-3 AU to flag physically impossible readings [58].

---

The Scientist's Toolkit: Research Reagent Solutions

Table 3: Key Materials for UV-Vis Spectroscopy Data Integrity

Item	Function
Certified Reference Materials (e.g., Holmium Oxide)	Used for wavelength calibration to verify the accuracy of the spectrophotometer's wavelength axis, a fundamental aspect of data integrity [8].
Stable Absorbance Standards (e.g., Neutral Density Filters)	Used for photometric (absorbance) calibration to ensure the instrument reports accurate absorbance values [8].
Matched Quartz Cuvettes	Provide identical pathlengths, preventing variations in absorbance readings due to pathlength inconsistencies, thus ensuring data consistency [3] [5].
High-Purity Solvents	Act as a blank and sample matrix; impurities can introduce unexpected absorption peaks, skewing results and compromising accuracy [3].
Data Validation Software	Automated tools that check for anomalies, discrepancies, and compliance with predefined rules, ensuring ongoing data quality and integrity [58].

---

Experimental Workflow Visualization

UV-Vis Data Integrity Workflow

Ensuring Data Integrity: Method Validation and Comparative Analysis

A Technical Support Guide for UV-Vis Spectroscopy

This guide provides troubleshooting and methodological support for researchers validating their UV-Vis methods according to the International Council for Harmonisation (ICH) guidelines, specifically addressing the critical parameters of accuracy, precision, and selectivity.

---

Troubleshooting Guides

Troubleshooting Accuracy

Accuracy expresses the closeness of agreement between the conventional true value and the value found.

Problem	Potential Cause	Solution	ICH Parameter Impact
Inconsistent Recovery	Improper calibration [8] or inaccurate standard preparation [3].	Use certified reference materials from national bodies (e.g., NIST) for calibration [8]. Prepare fresh, accurate standard solutions.	Affirms accuracy by ensuring the method correctly measures the analyte.
Baseline Drift & Noise	Instrument instability, temperature fluctuations, or dirty optics [3].	Allow the lamp to warm up for ~20 minutes [5]. Perform regular instrument maintenance and ensure a stable lab environment [3].	Prevents inaccurate absorbance readings, ensuring true accuracy.
Deviation from Linearity	Sample concentration is too high, leading to non-linearity (Beer-Lambert law deviation) [8].	Ensure samples are within the validated linear range. Dilute samples to an ideal absorbance range of 0.2–1.0 AU [8].	Confirms the method's accuracy across the specified range.

Troubleshooting Precision

Precision expresses the closeness of agreement between a series of measurements from multiple sampling of the same homogeneous sample.

Problem	Potential Cause	Solution	ICH Parameter Impact
High Repeatability (Repeat) Variance	Inconsistent sample placement or pathlength [3].	Use high-quality, matched cuvettes with identical pathlengths (e.g., 1 cm) and ensure proper alignment in the holder [3].	Directly impacts precision by reducing intra-assay variability.
Poor Intermediate Precision	Operator-to-operator variation in sample preparation or instrument handling [8].	Implement robust, detailed Standard Operating Procedures (SOPs) and training.	Ensures precision remains acceptable under varied conditions within the same lab.
Unstable Absorbance Readings	Sample degradation or evaporation during measurement [3] [5].	Protect light-sensitive samples and prepare immediately before analysis [3]. For long measurements, ensure the sample is sealed to prevent solvent evaporation [5].	Prevents time-dependent drift in results, upholding precision.

Troubleshooting Selectivity/Specificity

Selectivity is the ability to assess unequivocally the analyte in the presence of components which may be expected to be present.

Problem	Potential Cause	Solution	ICH Parameter Impact
Overlapping Absorption Peaks	The sample matrix or impurities have spectral peaks that interfere with the analyte [3] [8].	Use derivative spectroscopy to resolve overlapping peaks [3] [8]. For complex mixtures, employ a separation technique (e.g., HPLC) before UV-Vis analysis [8].	Demonstrates the method's ability to measure the analyte without interference.
Unexpected Peaks in Spectrum	Contaminated sample or dirty cuvettes [5].	Thoroughly wash cuvettes with compatible solvents. Always handle cuvettes with gloved hands to avoid fingerprints [5].	Ensures the measured signal is from the analyte alone.
High Stray Light	Stray light inside the spectrophotometer lowers absorbance readings and reduces accuracy, especially at high absorbance [3] [8].	Keep the instrument's optics clean and free from dust [3]. Validate the instrument using certified optical filters [3].	Stray light can cause deviations that mask the true absorbance of the analyte, affecting specificity at high concentrations.

---

Experimental Protocols for Validation

Protocol 1: Accuracy Study (Recovery Experiment)

This experiment validates the accuracy of your method by spiking a known amount of analyte into a sample matrix.

1. Objective: To determine the percentage recovery of the analyte to confirm method accuracy.

2. Materials:

• Certified analyte reference standard
• Appropriate solvent (e.g., water, methanol)
• Blank matrix (the material without the analyte)
• Class A volumetric flasks and pipettes
• Validated UV-Vis spectrophotometer with quartz cuvettes [5]

3. Methodology: 1. Prepare a stock solution of the analyte at a known concentration. 2. Prepare three levels of samples (e.g., 80%, 100%, 120% of the target concentration) by spiking the analyte into the blank matrix. Prepare each level in triplicate. 3. Prepare the blank matrix without the analyte as a control. 4. Measure the absorbance of all samples and the blank. 5. Calculate the concentration of each sample from the calibration curve. 6. Calculate the percentage recovery for each sample: * % Recovery = (Measured Concentration / Theoretical Concentration) × 100

4. Acceptance Criteria: The mean recovery should be within 98–102%, with low relative standard deviation (RSD), demonstrating high accuracy.

Protocol 2: Precision Study (Repeatability)

This experiment assesses the precision of the method under the same operating conditions over a short interval of time (repeatability).

1. Objective: To determine the repeatability (intra-assay precision) of the method by analyzing a homogeneous sample multiple times.

2. Materials:

• Homogeneous sample solution at a target concentration within the linear range (e.g., Abs ~0.5-1.0) [8]
• Validated UV-Vis spectrophotometer and matched cuvettes [3]

3. Methodology: 1. Prepare a single homogeneous sample solution. 2. Measure the absorbance of this sample six times. 3. For a more robust test, prepare and measure six independent samples from the same homogeneous source. 4. Calculate the mean concentration, standard deviation (SD), and relative standard deviation (RSD) for the six measurements. * % RSD = (Standard Deviation / Mean) × 100

4. Acceptance Criteria: The % RSD should typically be ≤ 2.0% for the method to be considered precise.

Protocol 3: Selectivity Study

This experiment confirms that the method is able to measure the analyte response without interference from other components.

1. Objective: To demonstrate that the absorbance measured is due solely to the analyte of interest.

2. Materials:

• Pure analyte standard solution
• Placebo or blank matrix (containing all potential interfering components except the analyte)
• Sample mixture (analyte + placebo/matrix)

3. Methodology: 1. Record the UV-Vis spectrum of the placebo/blank matrix. 2. Record the UV-Vis spectrum of the pure analyte standard. 3. Record the UV-Vis spectrum of the sample mixture (analyte + matrix). 4. Overlay the three spectra for comparison.

4. Acceptance Criteria: The spectrum of the sample mixture should show a clear, unambiguous peak for the analyte at the expected wavelength (λmax), with no significant interference or baseline distortion from the placebo matrix at that wavelength [3] [8]. This confirms the method's selectivity.

---

Frequently Asked Questions (FAQs)

Q1: What is the ideal absorbance range for the most accurate and linear results? For the best accuracy and to adhere to the Beer-Lambert law, the ideal absorbance range is between 0.2 and 1.0 absorbance units [8]. Absorbance readings above 1.0 can become unstable and non-linear [59] [8].

Q2: How often should I calibrate my UV-Vis spectrophotometer for validation work? For rigorous validation studies, perform a full instrument performance qualification (including wavelength accuracy, photometric accuracy, and stray light check) before starting the validation. Regular calibration with certified standards should be done weekly or before each batch of critical measurements, in accordance with standards like USP <857> or internal SOPs [8].

Q3: My sample is cloudy or has particulates. How does this affect validation parameters? Cloudy samples scatter light, which violates the fundamental principles of the Beer-Lambert law and leads to erroneously high absorbance readings [8]. This directly negatively impacts accuracy and precision. The solution is to filter the sample using a syringe filter compatible with your solvent (e.g., 0.45 µm or 0.22 µm pore size) to remove particulates before measurement [8].

Q4: Why is my baseline unstable even after calibrating with a blank? An unstable baseline can be caused by an instrument lamp that has not warmed up sufficiently (wait 20-30 minutes) [5], temperature fluctuations in the lab, electrical interference, or a dirty cuvette/cuvette holder [3]. Ensure the instrument is stable and the lab environment is controlled.

Q5: Can I use plastic cuvettes for UV-Vis method validation? For qualitative work or in the visible range only, plastic cuvettes may be sufficient. However, for a full validation that includes the ultraviolet (UV) range, you must use quartz cuvettes [5]. Quartz provides high transmission of both UV and visible light, whereas plastic absorbs strongly in the UV region, leading to inaccurate results.

---

The Scientist's Toolkit: Essential Research Reagents & Materials

Item	Function in UV-Vis Validation	Critical Notes
Certified Reference Materials	To establish traceability and accuracy for calibration [8].	Must be obtained from a certified supplier (e.g., NIST, EP, USP).
Quartz Cuvettes	To hold liquid samples for analysis [59] [5].	Essential for UV range measurements; ensure matched pathlengths for precision [3].
High-Purity Solvents	To dissolve the analyte and prepare blanks [3].	The solvent must have low absorbance in the spectral region of interest and be matched in the blank.
Holmium Oxide Filter	To verify the wavelength accuracy of the spectrophotometer [8].	A critical performance verification step during instrument qualification.
Neutral Density Filters	To check the photometric accuracy and linearity of the instrument [3] [8].	Used to ensure the instrument reports absorbance values correctly across a range.

---

Experimental Workflow and Logical Relationships

The following diagram illustrates the logical workflow for validating a UV-Vis method according to ICH Q2(R1) guidelines, highlighting the interdependence of accuracy, precision, and selectivity.

Benchmarking UV-Vis Performance Against Mass-Based Techniques like Py-GC-MS and TGA

For researchers and scientists, selecting the appropriate analytical technique is crucial for obtaining reliable data. UV-Vis spectroscopy is a cornerstone of modern laboratories due to its simplicity, speed, and cost-effectiveness. However, its performance must be understood in the context of more sensitive, mass-based techniques like Pyrolysis Gas Chromatography-Mass Spectrometry (Py-GC-MS) and Thermogravimetric Analysis (TGA). This guide provides a technical framework for benchmarking UV-Vis, troubleshooting common issues, and deciding when a mass-based technique is necessary for your research, all within the critical context of overcoming calibration challenges in UV-Vis spectroscopy.

---

Understanding the Techniques and Their Applications

Each technique operates on different physical principles, which directly dictates its strengths, limitations, and ideal use cases.

• UV-Vis Spectroscopy measures the absorption of ultraviolet or visible light by a sample. It is primarily used for quantitative analysis of light-absorbing species (chromophores) in solution. Its applications span drug quantification, protein analysis, and kinetic studies [8] [60].
• Py-GC-MS combines pyrolysis (thermal decomposition), gas chromatography (separation), and mass spectrometry (identification). It is a powerful mass-based technique for identifying and quantifying specific polymers or complex organic molecules, even in complex matrices like environmental samples [61] [40].
• TGA measures the change in a sample's mass as a function of temperature or time in a controlled atmosphere. It is used to determine a material's thermal stability, composition, and decomposition profile [40].

The table below summarizes their core characteristics.

Feature	UV-Vis Spectroscopy	Py-GC-MS	TGA
Measured Property	Light Absorbance	Mass-to-Charge Ratio (m/z)	Mass Loss
Primary Information	Concentration, chemical identity via spectra	Polymer identification, quantitative mass data	Thermal stability, compositional mass data
Sample Destruction	Non-destructive	Destructive	Destructive
Key Strength	Rapid, cost-effective, easy-to-use	High specificity and sensitivity for polymer identification	Excellent for quantifying thermal degradation and filler content
Key Limitation	Lower sensitivity; requires chromophores	Complex sample prep and data analysis; high cost	No molecular identification; only measures mass change

Quantitative Performance Benchmarking

A direct comparison reveals significant differences in sensitivity and quantitative output. A 2025 study on nanoplastic quantification provides clear experimental data for benchmarking [40].

• Experimental Context: Researchers quantified true-to-life polystyrene nanoplastics in stock suspensions using UV-Vis spectroscopy and benchmarked the results against Py-GC-MS and TGA.
• Key Finding: UV-Vis spectroscopy provided a rapid and effective means of quantification, showing reliable trends. However, it consistently underestimated the concentration of nanoplastics compared to the mass-based techniques [40].

The table below summarizes the quantitative results from this comparative analysis.

Technique	Quantitative Basis	Reported LOD for Polystyrene	Advantages for Quantification	Disadvantages for Quantification
UV-Vis Spectroscopy	Light extinction	Not specified in study	Rapid, accessible, non-destructive, low sample volume	Underestimates mass concentration vs. Py-GC-MS/TGA; requires chromophore
Py-GC-MS	Mass of polymer-specific markers	0.64 ng [61]	High sensitivity and specificity; identifies polymer type	Destructive; complex operation; requires calibration for each polymer
TGA	Mass loss at specific temperatures	Not directly comparable	Direct mass measurement; no calibration needed for mass loss	Destructive; cannot distinguish between polymer types without complementary data

Troubleshooting UV-Vis Performance

When UV-Vis results are inconsistent or deviate from expected values, consider these common issues and solutions.

FAQ: Common UV-Vis Challenges

1. My UV-Vis measurements are inconsistent. What could be wrong? Inconsistent results often stem from instrumental or sample-related issues.

• Check Calibration: Regularly calibrate the instrument's wavelength accuracy and photometric linearity using certified standards like Holmium Oxide [16] [8].
• Inspect for Stray Light: Stray light can cause significant errors, especially at high absorbance. It is a known source of photometric inaccuracy that should be checked [16] [8].
• Evaluate the Sample: Ensure samples are free of turbidity, which scatters light and violates the Beer-Lambert law. Filter samples if necessary. Also, verify that the solvent does not absorb strongly at the measurement wavelength [8].

2. When should I consider moving from UV-Vis to a mass-based technique? Consider a transition in these scenarios:

• For Complex Mixtures: When analyzing samples with overlapping absorption peaks that cannot be resolved mathematically or via separation [8] [62].
• For Trace-Level Analysis: When the analyte concentration is below the LOD of your UV-Vis instrument. Py-GC-MS can offer much lower detection limits (e.g., nanogram levels) [61] [62].
• For Non-Chromophoric Compounds: When the analyte lacks a chromophore and does not absorb UV-Vis light effectively. Mass spectrometry detects ions, making it suitable for a wider range of compounds [62].
• For Structural Confirmation: UV-Vis can suggest chemical composition, but mass spectrometry provides definitive structural and molecular weight information [63] [62].

3. How can I validate my UV-Vis method for a quantitative assay? Method validation is critical for reliable data, especially in regulated environments.

• Establish Linearity: Prepare a series of standard concentrations to ensure the response is linear over the intended range. The Beer-Lambert law assumes linearity, which can fail at high concentrations [8] [64].
• Determine LOD and LOQ: Calculate the Limit of Detection (LOD) and Limit of Quantification (LOQ) to define the method's sensitivity [64].
• Test Precision and Accuracy: Perform repeatability studies (precision) and recovery studies (accuracy) to ensure the method is both reproducible and correct [64]. A published method for ascorbic acid analysis, for example, achieved a %RSD (precision) of 0.13% and a recovery (accuracy) of 103.5% [64].

Experimental Protocol: Cross-Validation Workflow

This protocol outlines how to validate UV-Vis measurements using a mass-based technique like Py-GC-MS, based on methodologies used in nanoplastic research [61] [40].

Sample Preparation

• Prepare a homogeneous stock suspension of your analyte. For nanoplastics, this involves fragmentation and separation via sequential centrifugation [40].
• Critical Step: For solid samples, ensure they are fully dissolved or uniformly suspended. Sonication and filtration (e.g., using 1 μm filters) can help eliminate large aggregates and bubbles that cause light scattering [61] [8].

UV-Vis Analysis

• Use a microvolume UV-Vis spectrophotometer to conserve sample if available.
• Measure the absorbance at the characteristic wavelength for your analyte.
• Calculate the preliminary concentration using a pre-established calibration curve [64] [40].

Fraction Collection & Preparation for Py-GC-MS

• If sample concentration is low, use techniques like Asymmetrical Flow Field-Flow Fractionation (AF4) to concentrate and size-separate the sample [61].
• Collect fractions corresponding to your analyte.
• Freeze-dry (lyophilize) the collected fractions to remove the solvent and prepare the solid residue for pyrolysis [61].

Py-GC-MS Analysis

• Inject the dried sample into the Py-GC-MS system.
• Pyrolyze the sample at a high temperature (e.g., 550°C for polymers) to break it down into characteristic smaller fragments [61].
• The GC separates these fragments, and the MS identifies and quantifies them based on their mass-to-charge ratio (m/z).
• Quantify the polymer mass using specific pyrolysis markers and a calibration curve [61] [40].

Data Comparison and Benchmarking

• Compare the concentration results from UV-Vis and Py-GC-MS.
• Expect UV-Vis to potentially underestimate mass concentration compared to Py-GC-MS [40].
• Use this data to establish a correlation factor or define the valid operational range for your UV-Vis method.

The Scientist's Toolkit: Key Research Reagents & Materials

Item	Function in Experiment	Example from Literature
Holmium Oxide Solution	Calibrates wavelength accuracy of the UV-Vis spectrophotometer.	Used as a primary standard for verifying wavelength scale [16] [8].
Certified Reference Materials	Validates photometric linearity and stray light performance.	Materials traceable to NIST used for instrument qualification [8].
Ammonium Carbonate Buffer	Serves as a volatile carrier liquid in AF4 separation.	Used at 0.25 mM for nanoplastic separation; compatible with subsequent Py-GC-MS as it decomposes cleanly [61].
Polymer Nanobeads	Acts as a well-characterized standard for method development.	Polystyrene beads of defined size (e.g., 100 nm) used to validate the analytical workflow [40].
Specific Solvents	Dissolves or suspends analytes for analysis.	Tetrahydrofuran (THF) used to resuspend freeze-dried nanoplastic fractions before Py-GC-MS analysis [61].

The Role of Multivariate Calibration and Machine Learning in Deconvoluting Complex Mixtures

Troubleshooting Guide: Common Multivariate Calibration Issues

This guide addresses frequent challenges researchers face when using multivariate calibration with UV-Vis spectroscopy for analyzing complex mixtures like pharmaceutical drugs.

Q1: My UV-Vis spectra for a multi-component mixture are severely overlapping. Can I still quantify the individual components?

A: Yes. Traditional univariate calibration (measuring at a single wavelength) fails with overlapping spectra. However, multivariate calibration methods like Partial Least Squares (PLS) regression and Multivariate Curve Resolution-Alternating Least Squares (MCR-ALS) are designed for this. These algorithms use the entire spectral response rather than a single wavelength to quantify each component [65].

• Recommended Solution: Apply PLS regression as a robust starting point. It models the relationship between spectral data and concentration while handling correlated variables.
• Advanced Solution: If you expect unmodeled interferences (components not in the calibration set), use MCR-ALS. It can achieve the "second-order advantage," allowing it to quantify analytes even in the presence of unknown interferences [65].

Q2: My calibration model performs well on standard mixtures but fails on real product samples. What is happening?

A: This is likely due to the matrix effect, where excipients or other sample components interfere with the measurement. Scattering from cloudy samples or particulates can also break the Beer-Lambert law assumption [8].

• Recommended Solution: Improve your sample preparation. For liquid samples, use filtration or centrifugation to remove particulates causing light scattering [8].
• Model Improvement: Ensure your calibration set is representative. Incorporate the expected matrix interferences into your calibration mixtures. If using MCR-ALS, you can design the calibration with individual analyte standards and use the correlation constraint to model real samples accurately [65].

Q3: The predicted concentrations for my samples are consistently inaccurate. How can I diagnose my instrument?

A: Systematic errors often stem from instrumental limitations. Key parameters to check are stray light and wavelength accuracy [16].

• Stray Light: This is unwanted light outside the nominal bandwidth that reaches the detector. It causes significant photometric errors, especially at high absorbance values (e.g., above 1.2 AU). Test it using high-absorbance cutoff filters [8] [16].
• Wavelength Accuracy: An inaccurate wavelength scale shifts spectral features. Calibrate it using standard materials like holmium oxide solution or holmium glass filters, which have sharp, known absorption peaks [16].
• Preventive Maintenance: Perform regular instrument calibration following established guidelines (e.g., USP 857) using certified reference materials [8].

Q4: The predicted probabilities from my machine learning classifier don't match the real-world outcomes. How can I fix this?

A: Your model is likely uncalibrated. Many powerful classifiers, like Gradient Boosting machines, output scores that are not true probabilities. A prediction of 0.7 should mean a 70% chance of belonging to that class, which isn't always the case [66] [67].

• Diagnosis: Use a Reliability Diagram (Calibration Plot). This plots the mean predicted probability against the actual fraction of positives for binned predictions. A well-calibrated model's points will lie on the y=x line. Points below the line indicate overconfidence; points above indicate underconfidence [66] [67].
• Solutions: Apply post-processing calibration techniques:
  • Platt Scaling: Fits a logistic regression model to the classifier's outputs. Best for large datasets and when the uncalibrated output is already reasonable [67].
  • Isotonic Regression: A non-parametric method that fits a step-wise constant, non-decreasing function. It is more powerful but requires more data to avoid overfitting [66].

---

Experimental Protocol: MCR-ALS for Pharmaceutical Drug Quantification

This protocol summarizes the methodology for quantifying Active Pharmaceutical Ingredients (APIs) like paracetamol, caffeine, and diclofenac in mixtures using UV-Vis spectroscopy and MCR-ALS [65].

1. Reagent and Standard Preparation

• APIs: Obtain high-purity standards (e.g., paracetamol, caffeine, sodium diclofenac).
• Solvent: Use a suitable solvent such as methanol (HPLC-grade).
• Stock Solutions: Prepare individual 500 mg L⁻¹ stock solutions by dissolving an appropriate amount of each API in a volumetric flask filled to the mark with methanol.
• Calibration Standards: From stock solutions, prepare a univariate calibration series for each analyte (e.g., seven concentration levels from 1.00 to 7.00 mg L⁻¹).

2. Instrumentation and Data Acquisition

• Spectrometer: A standard UV-Vis spectrophotometer.
• Parameters: Acquire spectra across a relevant wavelength range (e.g., 200-400 nm). Use a matched quartz cuvette.
• Data Collection: Measure the spectra of all calibration standards and the test samples (mixtures or commercial products).

3. Data Analysis and Modeling

• Data Organization: Arrange the spectral data into a matrix D, where rows are samples and columns are wavelengths.
• MCR-ALS Model: Decompose the data matrix using the equation: D = CS^T + E
  • D is the matrix of mixed spectral signals.
  • C is the concentration profile matrix.
  • S^T is the spectral profile matrix.
  • E is the residual matrix.
• Apply Constraints: Use constraints during the ALS optimization to obtain physically meaningful results. Common constraints include:
  • Non-negativity for concentrations and spectra.
  • Correlation constraint to incorporate known concentration values from calibration samples.

The following workflow diagram illustrates the MCR-ALS procedure:

---

Machine Learning Calibration for Classification Models

When using ML for classification (e.g., identifying sample types), model calibration ensures that the output "probabilities" are trustworthy.

Assessing Calibration with Reliability Diagrams A Reliability Diagram visually assesses model calibration. The plot has a dashed line for perfect calibration, where the predicted probability perfectly matches the observed frequency. Your model's curve shows how well its probabilities are calibrated [67].

• Overconfident Model: The curve lies below the diagonal. A predicted probability of 0.9 corresponds to an actual outcome rate of less than 0.9.
• Underconfident Model: The curve lies above the diagonal. A predicted probability of 0.3 corresponds to an actual outcome rate greater than 0.3.

Quantifying Calibration: The Brier Score The Brier Score is the mean squared difference between the predicted probability and the actual outcome (0 or 1). A lower Brier score indicates better calibration, with 0 being a perfect score [67]. Brier Score = (1/N) * Σ(𝑝ᵢ - 𝑦ᵢ)²

Calibration Techniques The following table compares common calibration methods.

Method	Principle	Best For	Considerations
Platt Scaling	Fits a logistic regression model to the classifier's outputs.	Large datasets, when the uncalibrated output is already reasonable.	Assumes a sigmoidal relationship; may be too simple for some problems [67].
Isotonic Regression	Fits a non-parametric, non-decreasing step function to the data.	Smaller datasets where the miscalibration is non-sigmoidal.	More powerful but requires more data to avoid overfitting [66].

The workflow for diagnosing and correcting a poorly calibrated classifier is shown below:

---

Research Reagent Solutions

This table lists key materials and software used in advanced calibration and deconvolution experiments.

Item	Function/Application
Holmium Oxide Filter	A certified standard for verifying the wavelength accuracy of UV-Vis spectrophotometers [16].
Methanol (HPLC-grade)	A common solvent for preparing stock and standard solutions of Active Pharmaceutical Ingredients (APIs) to minimize solvent absorption interference [65] [8].
CR-39 Polymer Detector	A nuclear track detector (NTD) used in particle physics; its analysis via deconvolution and machine learning demonstrates the cross-disciplinary application of these techniques [68].
Scikit-learn Library	A Python library providing tools for machine learning, including calibration methods like Platt Scaling and evaluation metrics like the Brier score [67].

Technical Support Center: Troubleshooting UV-Vis Spectroscopy in Pharmaceutical Analysis

Frequently Asked Questions (FAQs)

FAQ 1: My UV-Vis spectrophotometer fails its self-test and shows an "NG9" or "Error Code = 24" message. What should I do?

This error typically indicates insufficient deuterium lamp energy in the UV region, often due to an aged or failing lamp [10]. If you are working exclusively in the visible light range, you may temporarily continue using the instrument, but for UV measurements, the deuterium lamp should be replaced to ensure accuracy [10].

FAQ 2: Why do I get an "ENERGY ERROR" or "L0" message when trying to take a measurement, especially at lower wavelengths like 220 nm?

These messages indicate low light energy reaching the detector [10]. The most common causes are:

• A failing light source: In the UV range, the deuterium lamp is likely nearing the end of its life. In the visible range, the tungsten lamp may be faulty [10].
• Blocked light path: Ensure the sample compartment is empty and the light path is not obstructed by a forgotten cuvette or other object [10] [69].
• Incorrect cuvette type: For UV measurements, standard plastic cuvettes block UV light. Use quartz or UV-compatible plastic cuvettes [69].

FAQ 3: My absorbance readings are unstable, fluctuating, or unexpectedly high (e.g., values above 3). How can I resolve this?

This is often a symptom of excessive sample concentration or insufficient light [69].

• Check sample concentration: Absorbance values are most reliable between 0.1 and 1.0 absorbance units. If your sample is too concentrated, dilute it and measure again [69].
• Inspect the light source: A weak or burned-out lamp can cause noisy data and high, unstable readings [10] [69].
• Verify the cuvette: Ensure the cuvette is clean, free of scratches, aligned correctly in the holder, and filled with enough solution to be in the light path [69] [70].

FAQ 4: The tungsten lamp on my instrument does not light up, even after replacement. I also noticed a burning smell. What is the problem?

A burning smell strongly suggests an electrical problem beyond the lamp itself [10]. The issue could be a broken power wire to the lamp or, more seriously, a burnt-out component in the lamp's power supply section. It is recommended to have the instrument inspected by a professional technician [10].

FAQ 5: Why are my spectrophotometer's results suddenly about double their expected values?

Before assuming an instrument error, first verify your sample preparation. The most common reason for a consistent doubling of expected values is an error in diluting or preparing the solution [10]. Re-prepare your standards and samples to rule out this possibility.

Troubleshooting Guide: Common Problems and Solutions

The table below summarizes frequent issues, their potential causes, and corrective actions to help you quickly resolve experimental challenges.

Problem Symptom	Possible Cause	Solution
"L0" error, low energy, or high absorbance at blank	Aging deuterium or tungsten lamp [10].	Replace the lamp.
	Sample concentration is too high [69].	Dilute the sample to bring absorbance into the 0.1-1.0 range.
	Incorrect cuvette type for UV measurements [69].	Use quartz cuvettes for UV light.
Noisy data or baseline drift	Voltage instability [10].	Use a voltage stabilizer.
	Dirty optics or cuvette [70].	Clean the optics and use a clean, scratch-free cuvette.
	Insufficient instrument warm-up time [70].	Allow the instrument to stabilize for 15-30 minutes before use.
Inconsistent or inaccurate readings	Contaminated cuvette or reference solution [70] [13].	Use clean cuvettes and fresh reference solutions.
	Cuvette not aligned properly in the holder [69].	Ensure the cuvette is inserted with the optical (clear) faces in the light path.
	High humidity affecting electronics [10].	Control the laboratory environment to reduce humidity.
Instrument fails self-test/calibration	Blocked internal light path [10] [69].	Check for and remove any foreign objects.
	Oxidized internal electrical contacts [10].	Requires professional service for cleaning or part replacement.
	Faulty lamp or lamp power supply [10].	Replace the lamp; if problem persists, check power supply (may need service).

Experimental Protocol: Method Validation for Simultaneous Drug Analysis

The following workflow details the development and validation of an HPLC-UV method for simultaneously analyzing cardiovascular drugs, adapted from a study on bisoprolol, amlodipine, telmisartan, and atorvastatin [71]. This protocol emphasizes the critical role of a properly calibrated UV-Vis detector within the HPLC system.

1. Instrumentation and Chromatographic Conditions [71]

• Equipment: HPLC system equipped with a quaternary pump, auto-sampler, and a UV-Vis photodiode array detector.
• Column: Thermo Hypersil BDS C18 column (150 mm × 4.6 mm, 5 µm particle size).
• Mobile Phase: Isocratic elution with a mixture of ethanol and 0.03 M potassium phosphate buffer (pH 5.2) in a 40:60 ratio.
• Flow Rate: 0.6 mL/min.
• Detection: UV monitoring at 240 nm for effective separation and detection of all four analytes.
• Injection Volume: 20 µL.

2. Sample Preparation (for Spiked Human Plasma) [71]

• Protein Precipitation: Add 600 µL of absolute ethanol to 200 µL of plasma and 50 µL of the working standard solution. Vortex and centrifuge to remove proteins.
• Liquid-Liquid Extraction (LLE):
  • First Extraction: Add 1.0 mL of diethyl ether to the supernatant. Vortex for 5 minutes and centrifuge at 3500 rpm for 5 min at 0°C. Collect the organic layer.
  • Second Extraction: Add 0.5 mL of dichloromethane to the remaining aqueous layer. Repeat vortexing and centrifugation. Combine this organic layer with the first.
• Evaporation and Reconstitution: Evaporate the combined organic layers under a gentle nitrogen stream at 40°C. Reconstitute the dry residue in 500 µL of ethanol, vortex, and inject into the HPLC system.

3. Key Validation Parameters and Results [71]

The method was validated per International Council for Harmonisation (ICH) guidelines. The quantitative data from the validation process is summarized below.

Validation Parameter	Results for Cardiovascular Drugs (BIS, AML, TEL, ATV)
Linearity Range	5–100 ng/mL (BIS, AML), 0.1–5 ng/mL (TEL), 10–200 ng/mL (ATV)
Correlation Coefficient (r²)	≥ 0.999
Trueness (%)	99.59 - 100.08%
Precision (RSD)	< 1.1%
Limit of Detection (LOD)	In the ng/mL range
Limit of Quantification (LOQ)	In the ng/mL range
Run Time	< 10 minutes

The Scientist's Toolkit: Essential Research Reagents and Materials

This table lists key materials and their functions for developing and validating analytical methods for cardiovascular drug formulations.

Item	Function in the Experiment
C18 Reverse-Phase Column	The stationary phase for chromatographic separation of drug components based on hydrophobicity [71].
UV-Vis HPLC Detector	Detects and quantifies the eluted drugs from the column by measuring their absorbance at a specific wavelength [71].
Certified Drug Standards	High-purity reference materials used to prepare calibration curves and validate the accuracy of the method [71].
Quartz Cuvettes	Required for any UV-range measurements as they do not absorb UV light, unlike standard plastic cuvettes [69].
HPLC-Grade Solvents	High-purity solvents (e.g., ethanol, methanol, acetonitrile) used in the mobile phase to ensure low UV background noise and prevent system damage [71] [72].
Stabilization Buffer	A buffer (e.g., potassium phosphate) maintains a consistent pH in the mobile phase, which is critical for reproducible retention times and peak shape [71].

Assessing Method Greenness, Practicality, and Sustainability

Troubleshooting Guides

Frequently Asked Questions (FAQs)

Q1: My UV-Vis spectrophotometer fails its self-test, showing error codes related to lamp energy or wavelength. What should I do? This commonly indicates an issue with the light source. An "NG9" or "D2-failure" message often points to a failing deuterium lamp that needs replacement [10]. A "Tungsten lamp energy high" fault may suggest a problem with the light source switching motor or its control circuit [10]. First, verify both lamps are lighting correctly. If the problem persists after lamp replacement, internal electrical issues, such as a faulty resistor or oxidized contacts, might require professional service [10].

Q2: Why does my instrument fail to zero, or why does the absorbance reading fluctuate uncontrollably? This is often caused by instrumental issues rather than sample problems [10]. However, before assuming instrument failure, ensure the sample compartment is empty and the lid is closed, as an open lid can cause a "dark signal too large" error [10]. If the issue is specific to the UV range (e.g., at 220 nm), the deuterium lamp is likely the culprit [10]. General fluctuation can also be due to voltage instability; using a voltage stabilizer is recommended [10].

Q3: My sample is cloudy or contains particles. How does this affect my measurement? Cloudy or particle-filled samples scatter light instead of absorbing it evenly, which violates the Beer-Lambert law and leads to inaccurate results [8]. This scattering can cause unexpectedly high absorbance readings because less light reaches the detector [5]. The solution is to filter your samples to remove particulates or to degas them to eliminate bubbles [3].

Q4: Why is the absorbance reading unstable or non-linear at high values? The Beer-Lambert law assumes a linear relationship, which fails at high concentrations due to molecular interactions or instrumental factors like stray light [8]. Absorbance readings become unstable and non-linear above 1.0 AU [8] [73]. For accurate results, dilute your samples to bring their absorbance into the ideal linear range of 0.2–1.0 Absorbance Units (AU) [8] [3].

Q5: I see unexpected peaks in my spectrum. What is the most likely cause? Unexpected peaks are frequently a sign of contamination [5]. This could be from unclean cuvettes, contaminated solvents, or impurities introduced during sample preparation. Always handle cuvettes with gloved hands, thoroughly wash cuvettes and substrates before use, and ensure your materials and solvents are pure [5].

Troubleshooting Common UV-Vis Spectroscopy Problems

The table below summarizes frequent issues, their potential causes, and solutions to ensure green, practical, and sustainable laboratory practices.

Problem	Root Cause	Sustainable & Practical Solution
High Absorbance/Non-linearity [8] [73]	Sample concentration is too high, leading to deviation from the Beer-Lambert law.	Dilute the sample to fall within the ideal 0.2–1.0 AU range. This saves reagents and prevents waste from failed runs [8] [3].
Cloudy Sample/High Scatter [8]	Particulates or bubbles in the sample cause light scattering.	Filter the sample with a sustainable, minimal-waste syringe filter or degas the solution [3].
Unstable Baseline (Noise & Drift) [8] [3]	Instrument instability, temperature fluctuations, or electrical interference.	Allow the lamp to warm up for 20-30 minutes [5] [74]. Place the instrument in a stable environment away from vibrations. Always run a proper blank [3].
Cuvette-Related Errors [3] [5]	Dirty cuvettes, fingerprints, wrong type (e.g., plastic with corrosive solvents), or pathlength variations.	Use reusable quartz cuvettes, clean them properly, and handle with gloves. Ensure cuvettes are correctly aligned in the holder [3] [5].
Low Light/Energy Errors [10]	Failing deuterium or tungsten lamp, or a blocked optical path.	Check for objects blocking the beam path. Replace aging lamps promptly. A well-maintained lamp consumes energy more efficiently [10].

Calibration Procedures and Verification

Regular calibration is essential for data integrity, preventing the waste of resources on unreliable experiments. The following tables outline key calibration parameters and their acceptance criteria.

Table 1: Wavelength Accuracy Control using Holmium Oxide Solution [75] This verifies that the instrument reports the correct wavelength.

Certified Wavelength (nm)	Acceptable Range (nm)
241.15 nm	240.15 – 242.15 nm
287.15 nm	286.15 – 288.15 nm
361.5 nm	360.50 – 362.50 nm
536.3 nm	533.30 – 539.30 nm

Table 2: Absorbance Accuracy Control using Potassium Dichromate [75] This verifies the instrument's photometric scale is accurate.

Wavelength (nm)	Specific Absorbance (E1%1cm)	Acceptable Range
235	124.5	122.9 – 126.2
257	144.0	142.8 – 145.7
313	48.6	47.0 – 50.3
350	106.6	104.9 – 108.2

Stray Light Check [75] A 1.2% w/v Potassium Chloride (KCl) solution is measured at 200 nm using water as a blank. The absorbance must be greater than 2.0. Low absorbance indicates stray light, which compromises accuracy, especially for high-absorbance samples.

Experimental Workflow for Reliable UV-Vis Analysis

The diagram below outlines a logical workflow for a sustainable and reliable UV-Vis analysis, integrating calibration, sample preparation, and measurement.

Troubleshooting Decision Pathway

When encountering a problem, follow this logical pathway to identify and address the most common issues efficiently.

The Scientist's Toolkit: Essential Research Reagent Solutions

This table details key materials and standards required for maintaining a properly calibrated and functioning UV-Vis spectrophotometer.

Item	Function & Rationale
Holmium Oxide	A primary standard for verifying wavelength accuracy. Its solution in perchloric acid has sharp, known absorption peaks used to check the instrument's wavelength scale [75] [74].
Potassium Dichromate	A standard for verifying absorbance/photometric accuracy. A carefully prepared solution has known absorbance values at specific wavelengths, ensuring the instrument's photometric scale is correct [75] [74].
Potassium Chloride	Used for stray light testing. A 1.2% KCl solution is measured at 200 nm; high absorbance confirms minimal stray light, which is critical for accurate readings, especially at high absorbance values [75].
Quartz Cuvettes	The preferred sample holder for UV-Vis work. Quartz is transparent across the UV and visible range, unlike glass or plastic, which absorb UV light [5]. Reusable cuvettes support sustainable lab practices.
Matched Solvents	High-purity solvents (e.g., water, hexane) with low absorbance in the spectral region of interest. Used for preparing blanks, samples, and standards to minimize background interference [3].

Conclusion

Overcoming calibration challenges in UV-Vis spectroscopy is not merely a technical exercise but a fundamental requirement for generating reliable data in biomedical research and drug development. A holistic approach—combining a deep understanding of instrumental principles, rigorous methodological protocols, proactive troubleshooting, and thorough validation—is essential. The future of UV-Vis spectroscopy is being shaped by integration with machine learning for complex mixture analysis, the development of more stable and efficient instruments, and a stronger emphasis on sustainable methodologies. By mastering these areas, scientists can fully leverage UV-Vis spectroscopy as a robust, precise, and indispensable tool in their analytical arsenal, thereby accelerating research and ensuring the highest standards of quality control.

References

• 1. The Beer-Lambert Law [https://chem.libretexts.org/Bookshelves/Physical_and_Theoretical_Chemistry_Textbook_Maps/Supplemental_Modules_(Physical_and_Theoretical_Chemistry)/Spectroscopy/Electronic_Spectroscopy/Electronic_Spectroscopy_Basics/The_Beer-Lambert_Law]
• 2. Beer-Lambert Law | Transmittance & Absorbance [https://www.edinst.com/resource/the-beer-lambert-law/]
• 3. Common Challenges in UV-Vis Spectroscopy and How to ... [https://www.herald-dispatch.com/sponsored/common-challenges-in-uv-vis-spectroscopy-and-how-to-overcome-them/article_8d766c72-da65-11ef-a1f7-4ff0689d93a1.html]
• 4. Expert Tips on How to Calibrate Spectrophotometer [https://www.biotechserv.com/expert-tips-on-how-to-calibrate-spectrophotometer/]
• 5. UV-Vis Spectroscopy Troubleshooting Made Easy [https://www.ossila.com/pages/troubleshooting-uv-vis-spectroscopy]
• 6. How To Calibrate a Spectrophotometer - Part 1 [https://www.fireflysci.com/news/2015/11/10/how-to-calibrate-a-spectrophotometer-part-1?srsltid=AfmBOoqGGlnAD0CWlAZVq4PcIEyCMhniSUrJWRY9zlTTsySw-TQUBYmR]
• 7. Why Your HPLC Baseline Drifts—And How to Stop It [https://www.sepscience.com/why-your-hplc-baseline-drifts-and-how-to-stop-it-11018]
• 8. UV-VIS Spectroscopy Not Working? Common Limitations ... [https://www.pgeneral.com/service-maintenance-and-repair/uv-vis-spectroscopy-not-working-common-limitations-and-how-to-overcome-them/]
• 9. Improve UV Visible Spectrophotometer Measurement ... [https://www.metashcorp.com/How-to-Improve-the-Measurement-Accuracy-of-UV-Visible-Spectrophotometer.html]
• 10. 20 Common Problems for Spectrophotometers [https://www.hinotek.com/20-common-problems-and-solutions-for-uv-vis-spectrophotometers/]
• 11. How to Calibrate Your UV-Vis Spectrophotometer Step-by-Step [https://www.labtechco.com/blog/how-to-calibrate-your-uv-vis-spectrophotometer-step-by-step]
• 12. Spectrophotometer Selection and Troubleshooting [https://sperdirect.com/blogs/news/spectrophotometer-selection-and-troubleshooting-a-practical-guide?srsltid=AfmBOorEfKU-gO4lkHItBppkfVebKDzdTFKc-gFpeM2_NE1UN-UazT7i]
• 13. Troubleshooting UV-Vis Spectroscopy Issues in Your Lab [https://www.linkedin.com/advice/0/what-most-effective-ways-troubleshoot-uv-vis]
• 14. My Spectrometer is not working properly. It won't calibrate ... [https://www.vernier.com/til/2354?srsltid=AfmBOoqRhRZpYH49d9nbS8j_yQBvS2bejUiE3pI8_z1RCrGv2uQTfa6p]
• 15. UV-Vis Spectroscopy: Principle, Strengths and Limitations ... [https://www.technologynetworks.com/analysis/articles/uv-vis-spectroscopy-principle-strengths-and-limitations-and-applications-349865]
• 16. Errors in Spectrophotometry and Calibration Procedures to ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC5293527/]
• 17. Subtraction dark spectra [https://ibsen.com/resources/detector-resources/subtracting-dark-spectra/]
• 18. Sources of Error in UV-Vis Spectroscopy [https://www.ossila.com/pages/sources-of-error-uv-vis-spectroscopy]
• 19. Spectroscopy Troubleshooting [https://www.numberanalytics.com/blog/spectroscopy-troubleshooting-guide]
• 20. How Temperature Affects UV-Vis Absorbance Readings [https://www.labtechco.com/blog/how-temperature-affects-uv-vis-absorbance-readings]
• 21. What are the Right Environmental Conditions for My ... [https://www.datacolor.com/business-solutions/blog/right-environmental-conditions-spectrophotometer/]
• 22. Temperature and hydration effects on absorbance spectra ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC2736758/]
• 23. Fluctuations in readings when using the UV-Vis Calibration ... [https://www.mtc-usa.com/kb-article/aa-01360]
• 24. Filter solarization, understanding, and mitigating degradation [https://www.spiedigitallibrary.org/conference-proceedings-of-spie/5529/0000/Filter-solarization-understanding-and-mitigating-degradation/10.1117/12.555016.full]
• 25. Exposure study on UV-induced degradation of PTFE ... - PMC [https://pmc.ncbi.nlm.nih.gov/articles/PMC11533813/]
• 26. Filter degradation or bad filter? - ATM, Optics and DIY Forum [https://www.cloudynights.com/forums/topic/941552-filter-degradation-or-bad-filter/]
• 27. UV Degradation and Yellowing Sign Substrates [https://ultraboard.com/uv-degradation-and-signs-yellowing-ultraboard-vs-the-competition/]
• 28. Optical degradation impact on the spectral performance of ... [https://www.sciencedirect.com/science/article/pii/S1364032121000770]
• 29. Calibration of UV / Visible Spectrophotometer [https://www.pharmaguideline.com/2010/05/calibration-of-uv-visible.html]
• 30. ASTM E275 Explained: UV-Vis Spectrophotometer ... [https://eureka.patsnap.com/article/astm-e275-explained-uv-vis-spectrophotometer-performance-verification]
• 31. UV-VIS Spectrophotometer Troubleshooting and FAQs [https://www.vernier.com/til/3044?srsltid=AfmBOorTb4_9INRIjqjU66qmqob078sc22EOX9ePS1Nr3dwH4t4Qx_XD]
• 32. Spectroscopic Sample Preparation: Techniques for ... [https://www.metkon.com/spectroscopic-sample-preparation/]
• 33. How to Reduce Sample Contamination [https://blog.omni-inc.com/blog/how-to-reduce-sample-contamination]
• 34. Compensate for or Minimize Matrix Effects? Strategies ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC7412464/]
• 35. Strategies for the Detection and Elimination of Matrix ... [https://www.chromatographyonline.com/view/strategies-detection-and-elimination-matrix-effects-quantitative-lc-ms-analysis]
• 36. My Spectrometer is not working properly. It won't calibrate ... [https://www.vernier.com/til/2354?srsltid=AfmBOoo8CAdoahiBT_rDuxTFp4_uNf4sYsooc_9nAKUoHSpAwe4eUy1F]
• 37. Spectrophotometer Selection and Troubleshooting [https://sperdirect.com/blogs/news/spectrophotometer-selection-and-troubleshooting-a-practical-guide?srsltid=AfmBOooYsavDMXom1jQ0AjmVeMff8yzSy403a6JUGuDKjKzTNgelmccr]
• 38. Comparative Evaluation of UV-Vis Spectroscopy-Based ... [https://pubmed.ncbi.nlm.nih.gov/39334815/]
• 39. Quantitative evaluation of true-to-life nanoplastics using UV ... [https://pubs.rsc.org/en/content/articlelanding/2025/en/d5en00502g]
• 40. Quantitative evaluation of true-to-life nanoplastics using UV ... [https://pubs.rsc.org/en/content/articlehtml/2025/en/d5en00502g]
• 41. Spectrophotometer Selection and Troubleshooting [https://sperdirect.com/blogs/news/spectrophotometer-selection-and-troubleshooting-a-practical-guide?srsltid=AfmBOopBuzaePpVpZbVou6YJwbNzkAkau1JxO-HuHZjxg718Z2_S5dZe]
• 42. How to Interpret UV-Vis Spectroscopy Results [https://www.azooptics.com/Article.aspx?ArticleID=2768]
• 43. Principles of Absorbance and UV-Vis Spectrophotometry [https://www.pgeneral.com/news/optimizing-spectrophotometric-measurements-best-practices-for-accurate-absorbance-readings/]
• 44. How UV-Vis is Evolving in 2025 for Better Lab Efficiency [https://www.richmondscientific.com/how-uv-vis-is-evolving-in-2025-for-better-lab-efficiency?srsltid=AfmBOopwH4kDFCpd5QxTRfKDJ_sZcyGgSaUJvGaSxgfDfaM_4h-CAIDP]
• 45. A calibration method for the UV-Vis-NIR and SWIR ... [https://ui.adsabs.harvard.edu/abs/2025EGUGA..2717572F/abstract]
• 46. My Spectrometer is not working properly. It won't calibrate ... [https://www.vernier.com/til/2354?srsltid=AfmBOopIcLyXHoNMYKnkTebTvtfhoXCtz9KrDrvEl8Y6mPgZZTkcDHOT]
• 47. Spectrophotometer Selection and Troubleshooting [https://sperdirect.com/blogs/news/spectrophotometer-selection-and-troubleshooting-a-practical-guide?srsltid=AfmBOoqjaBVLBBeBxVHM9WL7hKqPCLWMuSNoWofxeJXwSjSNgylxoa3a]
• 48. Top 10 Mistakes to Avoid in UV-Vis Spectrophotometry [https://labindia-analytical.com/Blog_detail/view/Top-10-Mistakes-to-Avoid-in-UV-Vis-Spectrophotometry?srsltid=AfmBOoonyyWfvqhZ-V162SV-ysA38Dlx6Eiet2DX8YN7EUYdpwUTRpfK]
• 49. Micro-Volume UV/Vis Spectrophotometer Selection Guide [https://www.blue-raybio.com/en/blog/Micro-Volume-UVVis-Spectrophotometer-Selection-Guide]
• 50. UV-VIS Spectrophotometer Troubleshooting and FAQs [https://www.vernier.com/til/3044?srsltid=AfmBOopOXdCRXKM1WVCnO8_C0jTYAU2v-jS4_HaTubrTdmptLwRRVd_4]
• 51. About the deuterium lamp life [http://www.chromforum.org/viewtopic.php?t=2046]
• 52. Cary5000's UV lamb failed - Forum - Molecular Spectroscopy [https://community.agilent.com/technical/molecular-spec/f/forum/3931/cary5000-s-uv-lamb-failed]
• 53. Tips to obtain reliable UV-Vis spectra - Editage [https://www.editage.com/insights/tips-to-obtain-reliable-uv-vis-spectra]
• 54. My Spectrometer is not working properly. It won't calibrate ... [https://www.vernier.com/til/2354?srsltid=AfmBOoobZMHkluVvFfvzxhwStdw_XxyzVf0axV6OMwonPPDwnDj7TQjk]
• 55. Maintenance of UV-VIS Spectrophotometer & PM Kit [https://nexusanalyticals.com/maintenance-of-uv-vis-spectrophotometer-pm-kit/]
• 56. UV-VIS Spectrophotometer Troubleshooting and FAQs [https://www.vernier.com/til/3044?srsltid=AfmBOopV1pP78le9FopwmPDwrUy-7zH5EDwyl2b3mVbRZb9UKoQUp5xg]
• 57. How can Communication Protocols Enhance System ... [https://www.geeksforgeeks.org/system-design/how-can-communication-protocols-enhance-system-security/]
• 58. What is Data Integrity? | IBM [https://www.ibm.com/think/topics/data-integrity]
• 59. UV-VIS Spectrophotometer Troubleshooting and FAQs [https://www.vernier.com/til/3044?srsltid=AfmBOooqZFEt5PagudZvTRbNqgzzTUaU8SnKFGT2mHc0fEQFmwvuvzyZ]
• 60. 5 Common Misconceptions About UV VIS Spectroscopy [https://www.emorywheel.com/article/2025/06/5-common-misconceptions-about-uv-vis-spectroscopy]
• 61. Integrating AF4 and Py-GC-MS for Combined Size- ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC12291041/]
• 62. Performance Evaluation of three Liquid Chromatography ... [https://pmc.ncbi.nlm.nih.gov/articles/PMC2914548/]
• 63. How is Mass Spectroscopy different from other ... [https://lab-training.com/how-is-mass-spectroscopy-different-from-other-spectroscopic-techniques/]
• 64. Validation of the UV-Vis Spectrophotometric Method for ... [https://oahsj.org/index.php/oahsj/article/view/101]
• 65. A simplified and versatile multivariate calibration procedure ... [https://www.sciencedirect.com/science/article/abs/pii/S0026265X18314747]
• 66. A Comprehensive Guide on Model Calibration [https://towardsdatascience.com/a-comprehensive-guide-on-model-calibration-part-1-of-4-73466eb5e09a/]
• 67. Understanding Model Calibration in Machine Learning [https://medium.com/@sahilbansal480/understanding-model-calibration-in-machine-learning-6701814dbb3a]
• 68. Application of Machine Learning on sequential ... [https://www.sciencedirect.com/science/article/pii/S1350448721000949]
• 69. My Spectrometer is not working properly. It won't calibrate ... [https://www.vernier.com/til/2354?srsltid=AfmBOopBM_EjVWKgx-nffGxctq_GgJ1itJPEJFHIpMEtQvgG7U1bHw4T]
• 70. Spectrophotometer Selection and Troubleshooting [https://sperdirect.com/blogs/news/spectrophotometer-selection-and-troubleshooting-a-practical-guide?srsltid=AfmBOoqm6IKZTzx0OnwyS_Wtv04lysqP-InfLhROIQaZs48FQ6cZx_2n]
• 71. Development and validation of a highly sensitive HPLC ... [https://www.nature.com/articles/s41598-025-94907-0]
• 72. QbD-driven RP-HPLC method for the simultaneous analysis of ... [https://bmcchem.biomedcentral.com/articles/10.1186/s13065-025-01661-5]
• 73. UV-VIS Spectrophotometer Troubleshooting and FAQs [https://www.vernier.com/til/3044?srsltid=AfmBOor0NTTN0mgf6tEYJ2QZmVDW6CC4UkGhx2aJVg2-AITQfZCc53hh]
• 74. How to Calibrate a UV-Vis Spectrophotometer [https://synapse.patsnap.com/article/how-to-calibrate-a-uv-vis-spectrophotometer]
• 75. SOP for Calibration of UV-Vis Spectrophotometer [https://www.pharmaguideline.com/2011/02/sop-for-calibration-of-uv-vis.html]
